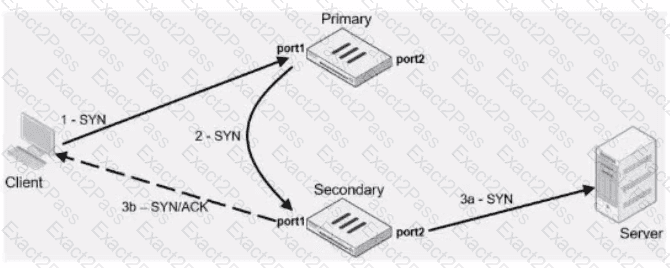

In an active-active load balancing scenario, when the primary FortiGate forwards the SYN packet to the secondary FortiGate, the destination MAC address would be the secondary ' s physical MAC on port1 , as the packet is being sent over the network and the physical MAC is used for layer 2 transmissions.

For improving reliability over a lossy IPSec tunnel, the fragmentation and fragmentation-mtu pa rameters should be configured. In scenarios where there might be issues with packet size or an unreliable network, setting the IPsec phase 1 to allow for fragmentation will enable large packets to be broken down, preventing them from being dropped due to s ize or poor network quality. The fragmentation-mtu specifies the size of the fragments. This is aligned with Fortinet ' s recommendations for handling IPsec VPN over networks with potential packet loss or size limitations.

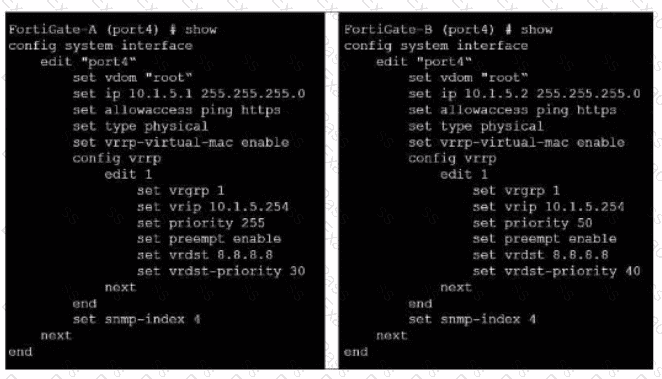

The Virtual Router Redundancy Protocol (VRRP) configuration in the exhibit indicates that 10.1.5.254 is set as the v irtual IP (VRIP), commonly serving as the default gateway for the internal network (A). With vrrp-virtual-mac enabled, both FortiGates would use the same virtual MAC address, ensuring a seamless transition during failover (B). The VRRP domain does not use the physical MAC address (C), and the priority settings indicate that FortiGate-A would be the primary router by default due to its higher priority (D).

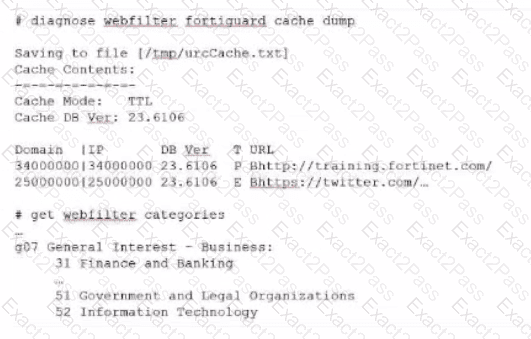

Option B is correct because the administrator can determine the category of the traini ng.fortinet.com website by looking up the hex value of 34 in the second command output.  This is because the first command output shows that the domain and the IP of the website are both in category (Hex) 34, w hich corresponds to Information Technology in the second command output 1 .

Option A is incorrect because the administrator does not need to convert the first three digits of the IP hex value to binary.  The IP hex value is already in the same format as the category hex value, so the administrator can simply compare them without any conversion 2 .

Option C is incorrect because the administra tor does not need to add both the Pima in and Iphex values of 34 to get the category number.  The Pima in and Iphex values are no t related to the category number, but to the cache TTL and the database version respectively 3 .

Option D is incorrect because the administrator does not need to convert the first two digits of the Domain hex value to a decimal value.  The Domain hex value is already in the same format as the category hex value, so the administrator can s imply compare them without any conversion 2 .  References : =

1 : Technical Tip: Verify the webfilter cache content 4

2 : Hexadecimal to Decimal Converter 5

3 : FortiGate - Fortinet Community 6

: Web filter | FortiGate / FortiOS 7.2.0 - Fortinet Documentation 7

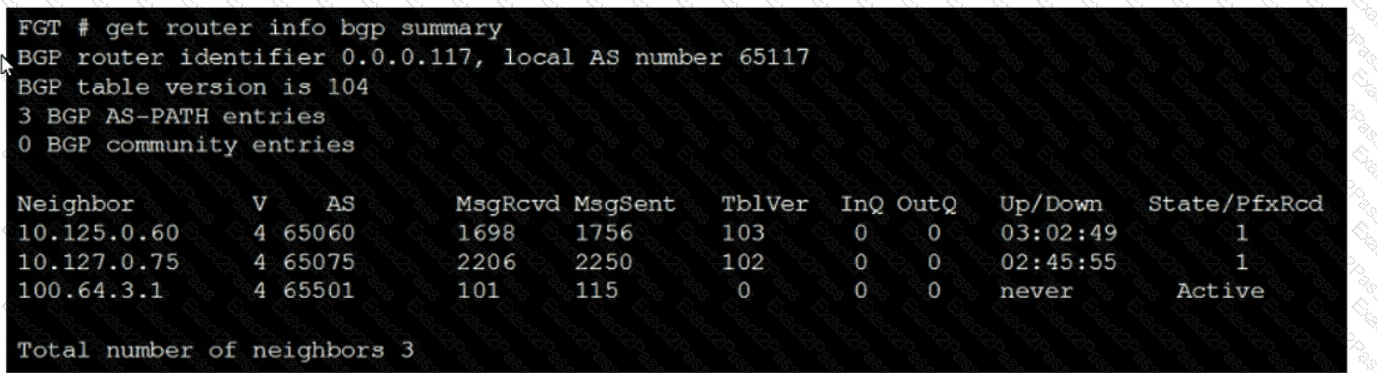

The output of the BGP (Border Gateway Protocol) summary shows details about the BGP neighbors of a router, their Autonomous System (AS) numbers, the state of the BGP session, and other metrics like messages received and sent.

From the BGP summary provided:

A. External BGP (EBGP) exchanges routing information.

This conclusion can be inferred becau se the AS numbers for the neighbors are different from the local AS number (65117), which suggests that these are external connections.

B. The BGP session with peer 10.127.0.75 is established.

This is indicated by the state/prefix received column showing a numeric value (1), which typically means that the session is established and a number of prefixes has been received.

C. The router 100.64.3.1 has the parameter bfd set to enable.

This cannot be concluded directly from the summary without additional contex t or commands specifically showing BFD (Bidirectional Forwarding Detection) configuration.

D. The neighbors displayed are linked to a local router with the neighbor-range set to a value of 4.

The neighbor-range concept does not apply here; the value 4 in t he ' V ' column stands for the BGP version number, which is typically 4.

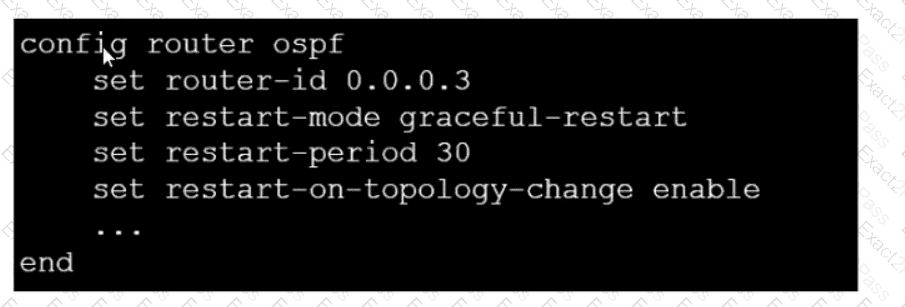

From the partial OSPF (Open Shortest Path First) configuration output:

B. The router sends grace LSAs before it restarts: This is implied by the command ' set restart-mode graceful-restart ' . When OSPF is configured with graceful restart, the router sends grace LSAs (Link State Advertisements) to inform its neighbors that it is restarting, allowing for a seamless transition without recalculating routes.

Fortinet documentation on OSPF configuration clearly states that enabling graceful restart mode allows the router to maintain its adjacencies and routes during a brief restart period.

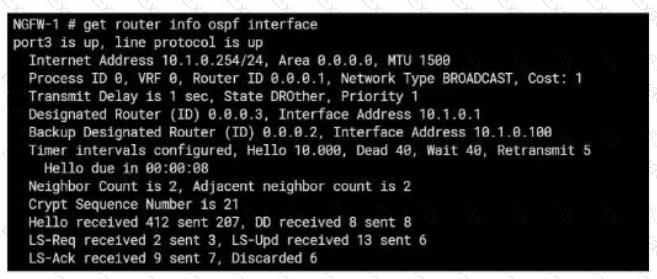

From the OSPF interface command output, we can conclude that the port3 network has more than one OSPF router because the Neighbor Count is 2, indicating the presence of another OSPF router besides NGFW-1. Additionally, we can deduce that the interfaces of the OSPF routers match the MTU value configured as 1500, which is necessary for OSPF neighbors to form adjacencies. The MTU mismatch would prevent OSPF from forming a neighbor relationship.

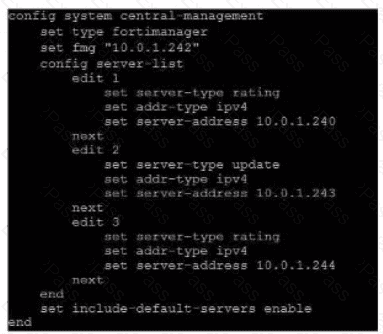

In the event of an outage at 10.0.1.240, the FortiGate will choose the next server in the sequence for web filter rating requests, which is 10.0.1.244 according to the configuration shown in the exhibit. This is because the server list is ordered by priority, and the server with the lowest priority number is chosen first. If that server is unavailable, the next server with the next lowest priority number is chosen, and so on. The public FortiGuard servers are only used if the include-default-servers option is enabled and all the custom servers are unavailable.  References  : =  Fortinet Enterprise Firewall Study Guide for FortiOS 7.2 , page 132.
