The full separation model for Internet access and MPLS L3VPN services is chosen to enable EGP (Exterior Gateway Protocol) and IGP (Interior Gateway Protocol) to operate independently. In this model, the internet access and MPLS L3VPN services are fully separated, ensuring that the two networks do not interfere with each other’s operation. This separation enhances network security, performance, and manageability.  References : Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

The SPT threshold set to infinity causes multicast traffic to permanently stay on the shared tree and not switch to the source tree. In multicast routing, the Shortest Path Tree (SPT) threshold determines when a router should switch from receiving multicast traffic on the shared tree to receiving it on a source tree.  Setting the SPT threshold to infinity means that the router will always receive multicast traffic on the shared tree

The command  nsf ietf helper strict-lsa-checking  is used to configure the router to terminate the OSPF graceful restart process if it detects any changes in the LSA during the restart. This ensures that the network remains stable and consistent by preventing the use of outdated or incorrect routing information.

The RPL script in the image is used to filter BGP routes based on the AS path. The script includes a condition that checks if the AS path contains ‘7077’ using a regular expression (ios-regex ‘777$’). If this condition is met, the route is passed; otherwise, it would be denied by default. Therefore, this script allows routes from AS 7077 and denies others.

References  := For specific references, please consult the Implementing and Operating Cisco Service Provider Network Core Technologies source book or study guide, as I am unable to provide direct links or access content from external websites.

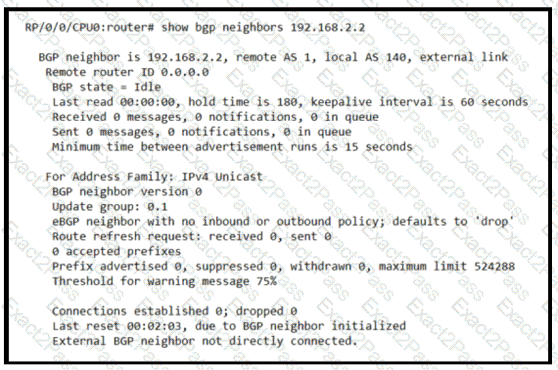

 The show command output indicates that the BGP neighbor is in an Idle state, which means the BGP session has not been established. Additionally, it mentions “eBGP neighbor with no inbound or outbound policy; defaults to ‘drop’”. This implies that in the absence of specific policies for route advertisement and acceptance, the default action is to drop all routes. Therefore, no routes are accepted from the neighbor 192.168.2.2, nor are any routes advertised to it, aligning with option C.  References : = Implementing and Operating Cisco Service Provider Network Core Technologies course materials.

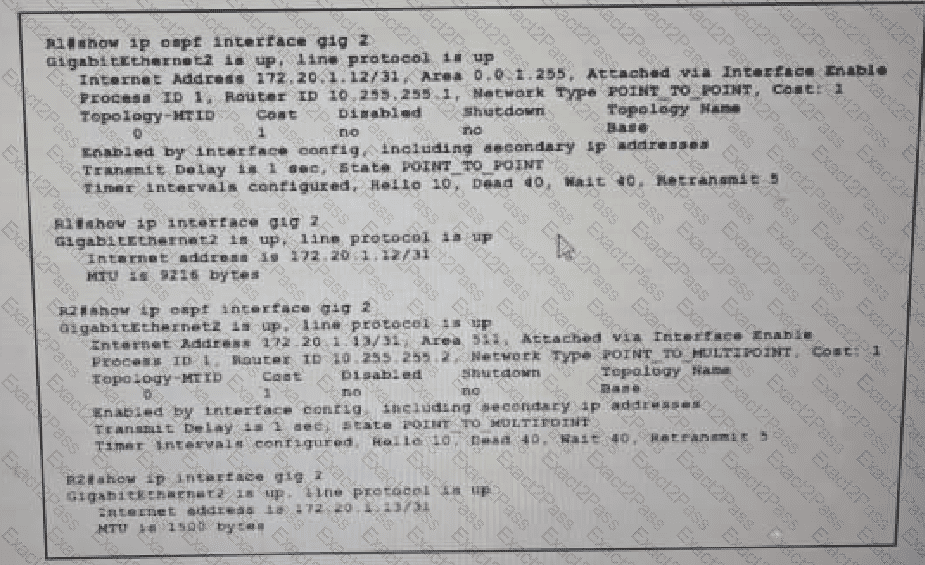

 In OSPF, for two routers to form an adjacency, they must have matching MTU sizes on their connecting interfaces. If the MTUs are mismatched, OSPF adjacency will be stuck in the EXSTART/EXCHANGE state because OSPF hello packets will not be exchanged between the routers. In this case, both routers R1 and R2 are stuck in EXCHANGE/EXSTART state due to mismatched MTU sizes as indicated in the exhibit.  References : Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) -  Cisco

Cisco MPLS Traffic Engineering (TE) tunnels necessitate a link-state routing protocol like OSPF or IS-IS because these protocols use Shortest Path First (SPF) calculations. The tunnel endpoints leverage these SPF calculations to implement the tunnel, ensuring an efficient and optimized path through the network. This is essential for MPLS TE, which aims to optimize network resource utilization and improve traffic distribution across the network.

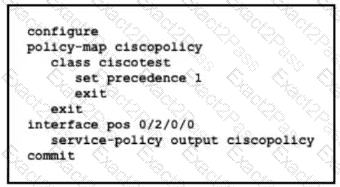

The configuration applies a QoS policy to the pos0/2/0/0 interface, which affects traffic as it exits the interface. The policy map “ciscopolicy” references the class map “ciscotest”, where traffic matching the class map criteria will be remarked. The command  set precedence 1  within the class map “ciscotest” indicates that the traffic will be remarked to IP precedence 1. Therefore, the correct effect of this configuration is that traffic identified by the “ciscotest” class map will be remarked from its original IP precedence to IP precedence 1 when it exits the pos0/2/0/0 interface.

Cisco MPLS TE uses OSPF extensions to allow for optimized transit between a headend router and a destination router by utilizing Opaque LSAs. Opaque LSAs allow for the calculation and establishment of unidirectional tunnels that are set according to the network constraint. The tunnels are built bidirectionally by utilizing Router LSAs, which share router link advertisements to each router within the MPLS environment. ASBR Summary LSAs are also used to share OSPF domain information so that the two routers know how to reach each other during tunnel setup. Furthermore, Network LSAs are used to share RSVP information which is necessary for setting up the tunnel between the two routers.

Cisco MPLS TE (Traffic Engineering) tunnels provide a way to optimize traffic routing within an MPLS network. However, there are certain constraints to be aware of:

QoS-aware tunneling : Unfortunately, Cisco MPLS TE tunnels do not inherently support Quality of Service (QoS) awareness. This means that the tunnels themselves do not directly consider QoS parameters when making routing decisions. QoS policies must be applied separately at the network level, and the TE tunnels do not inherently take QoS into account during path selection.

Tunnels spanning multiple OSPF areas : Contrary to option A, Cisco MPLS TE tunnels can indeed span multiple OSPF areas. The use of OSPF areas does not inherently restrict the creation of MPLS TE tunnels across area boundaries.

ISIS metrics : Option B is incorrect. When using ISIS (Intermediate System to Intermediate System) as the Interior Gateway Protocol (IGP), newer-style metrics (such as wide metrics) are supported. Older-style metrics are not the only option.

Tunnels over IP unnumbered links : Option C is also incorrect. Cisco MPLS TE tunnels can be configured over IP unnumbered links, allowing efficient use of IP addresses.

In summary, the primary constraint is the lack of built-in QoS awareness within MPLS TE tunnels.

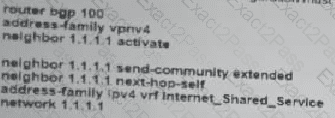

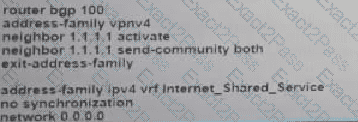

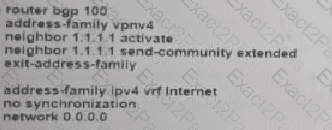

To inject a default route into the MP-BGP address family for a dedicated VRF, you would typically need to:

Configure a static default route  in the VRF using the  ip route vrf < VRF-NAME > 0.0.0.0 0.0.0.0 < NEXT-HOP >  command.

Redistribute the static route  into BGP using the  redistribute static  command under the BGP VRF configuration.
