Explanation

Explanation

Storm control prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on one of the physical interfaces. A LAN storm occurs when packets flood the LAN, creating excessive traffic and degrading network performance. Errors in the protocol-stack implementation, mistakes in network configurations, or users issuing a denial-of-service attack can cause a storm.

By using the “storm-control broadcast level [falling-threshold]” we can limit the broadcast traffic on the switch.

Group Encrypted Transport VPN (GET VPN) is used to implement secure VPN connectivity among company branches over a private IP cloud with any-to-any scalable connectivity. GET VPN provides a way to encrypt traffic between sites without the need for point-to-point tunnels, supporting efficient, scalable, and secure communication across a broad network infrastructure.

accomplish the task is to install and configure the Cisco DUO Authentication Proxy and configure the identity source sequence within Cisco ISE. This will allow the engineer to integrate Cisco ISE with Cisco DUO for TACACS+ device administration using Active Directory as the primary authentication source and Cisco DUO as the secondary authentication source for multi-factor authentication (MFA). The steps to configure this solution are as follows12:

Install and configure the Cisco DUO Authentication Proxy on a Windows or Linux machine. The proxy will act as a RADIUS server that communicates with Cisco ISE and a RADIUS client that communicates with Cisco DUO cloud. The proxy will also connect to Active Directory for the primary authentication of the users.

Configure the proxy by editing the authproxy.cfg file. The file should include the following sections:

[ad_client]: This section defines the connection parameters to Active Directory, such as the host, service_account_username, service_account_password, and search_dn.

[radius_server_auto]: This section defines the RADIUS server parameters for the proxy, such as the ikey, skey, api_host, radius_ip_1, radius_secret_1, and client parameters. The ikey, skey, and api_host are obtained from the Cisco DUO web portal when creating a RADIUS application. The radius_ip_1 and radius_secret_1 are the IP address and shared secret of the Cisco ISE node that will send authentication requests to the proxy. The client parameter specifies the authentication method for Cisco DUO, such as auto, push, phone, or passcode.

[main]: This section defines the global settings for the proxy, such as the debug, log_max_size, and log_max_files parameters.

Restart the proxy service after saving the authproxy.cfg file.

Configure Cisco ISE as a TACACS+ server and add the proxy as an external RADIUS server. The steps are as follows:

Navigate to Administration > System > Deployment and enable the Device Administration Service on the appropriate node.

Navigate to Work Centers > Device Administration > Network Resources and add the network devices that will use TACACS+ for device administration. Specify the device name, IP address, device type, and shared secret.

Navigate to Work Centers > Device Administration > Network Access and add the proxy as an external RADIUS server. Specify the server name, IP address, port, shared secret, and timeout. Optionally, enable the Continue for additional authorization policy option to allow Cisco ISE to perform authorization based on the user’s Active Directory attributes after successful authentication by Cisco DUO.

Navigate to Work Centers > Device Administration > Policy Elements > Results > TACACS Profiles and create a TACACS profile for device administration. Specify the profile name, type, and custom attributes, such as the shell:roles and shell:priv-lvl attributes.

Navigate to Work Centers > Device Administration > Policy Sets and create a policy set for device administration. Specify the policy set name, conditions, and results. The conditions can be based on the device type, the protocol, or the identity source sequence. The results can be the TACACS profile and the external RADIUS server (the proxy).

Configure the network devices to use TACACS+ for device administration and specify Cisco ISE as the TACACS+ server and the proxy as the RADIUS server. The configuration commands may vary depending on the device type and model, but the general syntax is as follows:

aaa new-model

aaa authentication login default group tacacs+ local

aaa authorization exec default group tacacs+ local

aaa accounting exec default start-stop group tacacs+

tacacs server ISE

address ipv4 < ISE IP address >

key < ISE shared secret >

radius server DUO

address ipv4 < proxy IP address > auth-port < proxy port >

key < proxy shared secret >

Test the solution by logging into the network devices using Active Directory credentials. The user should receive a Cisco DUO prompt for the second factor authentication, such as a push notification, a phone call, or a passcode. After approving the second factor authentication, the user should be granted access to the device with the appropriate privileges based on the TACACS profile and the Active Directory attributes.

References := 1: Duo MFA Integration with ISE for TACACS+ Device Administration with Microsoft Active Directory Users - Cisco Community 2: Protecting Access to Network devices with ISE TACACS+ and DUO MFA - Cisco Community

The reason for the failure is that detections for MD5 signatures must be configured in the advanced custom detection policies, not in the simple detection policy section. The simple detection policy section allows users to create a list of SHA-256 hashes of files that they want to block or quarantine on the endpoints. The SHA-256 hash is a more secure and unique identifier of a file than the MD5 hash, which can have collisions or duplicates. The advanced custom detection policy section allows users to create more complex and flexible rules to detect and block files based on various criteria, such as file name, size, type, signature, or MD5 hash. The advanced custom detection policy section also supports wildcards and regular expressions to match multiple files or patterns. Therefore, if the administrator wants to add specific MD5 signatures to the custom detection policy, they should use the advanced custom detection policy section instead of the simple detection policy section.

To create an access control list (ACL) on a Cisco Adaptive Security Appliance (ASA) firewall, you need to use the access-list command followed by the name of the ACL, the action (permit or deny), the protocol, the source address and mask, and the destination address and mask. For example, to permit HTTP traffic from the inside network 192.168.1.0/24 to any destination on the internet, you can use this command:

access-list inside_access_in permit tcp 192.168.1.0 255.255.255.0 any eq www

This command creates an ACL named inside_access_in that permits TCP traffic from the source network 192.168.1.0/24 to any destination with the destination port equal to 80 (www). The eq keyword is used to specify the port number or name. You can also use the range keyword to specify a range of ports.

To apply the ACL to an interface, you need to use the access-group command followed by the name of the ACL and the direction (in or out). For example, to apply the ACL to the inside interface in the inbound direction, you can use this command:

access-group inside_access_in in interface inside

This command applies the ACL inside_access_in to the interface named inside in the inbound direction. This means that the ACL will filter the traffic that enters the firewall through the inside interface.

Option D is the only option that matches the syntax of the access-list command for the ASA firewall. Option A is incorrect because it uses the ip keyword instead of the tcp keyword. Option B is incorrect because it uses the any keyword for both the source and destination addresses. Option C is incorrect because it uses the host keyword for the source address, which is not valid for a network address.

two-factor authentication. Two-factor authentication (2FA) is a security measure that requires users to provide two pieces of evidence to verify their identity before accessing SaaS-based applications1. These pieces of evidence can be something the user knows (such as a password or a PIN), something the user has (such as a smartphone or a token), or something the user is (such as a fingerprint or a face scan)1. 2FA enhances the security of SaaS-based applications by making it harder for attackers to compromise login credentials and gain unauthorized access to sensitive data and resources2. The other options are not correct because they are not sufficient to secure SaaS-based applications. Modular policy framework (MPF) is a feature of Cisco ASA that allows administrators to create and apply security policies to traffic flows3. However, MPF alone cannot protect SaaS-based applications from web-based threats or data breaches. Application security gateway (ASG) is a device that provides firewall, intrusion prevention, and content filtering services for web applications4. However, ASG cannot prevent credential theft or account takeover attacks that target SaaS-based applications. End-to-end encryption (E2EE) is a method of encrypting data in transit and at rest, so that only the sender and the receiver can decrypt it. However, E2EE cannot prevent unauthorized access to SaaS-based applications if the encryption keys are compromised or stolen. References:

1: What is Two-Factor Authentication (2FA)?

2: How to Secure Your SaaS Applications

3: Modular Policy Framework Overview

4: What is an Application Security Gateway?

What is End-to-End Encryption?

Explanation

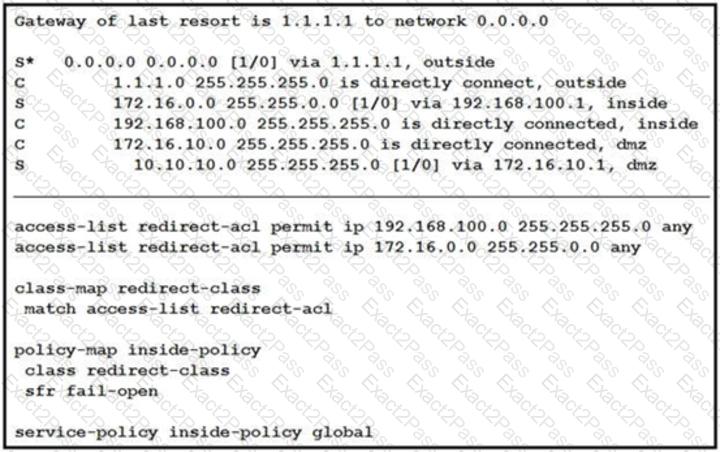

The purpose of above commands is to redirect traffic that matches the ACL “redirect-acl” to the Cisco

FirePOWER (SFR) module in the inline (normal) mode. In this mode, after the undesired traffic is dropped and

any other actions that are applied by policy are performed, the traffic is returned to the ASA for further

processing and ultimate transmission.

The command “service-policy global_policy global” applies the policy to all of the interfaces.

The Secure Event Connector is a component of the Security Analytics and Logging (SaaS) solution that enables the FMC to send logs to the cloud-based service. The Secure Event Connector uses syslog to forward events from the FMC and the managed devices to the cloud. This method reduces the load on the firewall resources, as the events are sent in batches and compressed before transmission. The Secure Event Connector also provides encryption, authentication, and reliability for the log data. The other methods are not supported by the Security Analytics and Logging (SaaS) solution12 References := 1: Cisco Security Analytics and Logging (On Premises)

 A SYN flood is a type of denial-of-service (DoS) attack that exploits the TCP three-way handshake process to exhaust the resources of a target server. The attacker sends a large number of SYN packets to the target server, each with a spoofed source IP address. The target server allocates resources for each incoming SYN packet and responds with a SYN-ACK packet to the spoofed address. However, the spoofed address never sends back the final ACK packet to complete the connection, leaving the target server with many half-open connections that eventually fill up its connection table. This prevents the target server from accepting new legitimate connections and causes service disruption123 References: 1: Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0 course overview 2: SYN Flood Explained. How to Prevent this Attack from Taking over your … 3: What is a SYN flood attack? | Cloudflare

https://www.cisco.com/c/dam/en_us/about/doing_business/legal/service_descriptions/docs/Cisco_Secure_Managed_Endpoint.pdf

To force a session to be adjusted after a policy change is made, two configurations are required on Cisco ISE and on Cisco TrustSec devices: Dynamic Authorization and Change of Authorization (CoA). Dynamic Authorization allows Cisco ISE to send commands to network devices to change the authorization status of a user session. CoA is a feature that enables Cisco ISE to send a RADIUS message to a network device to reauthenticate or disconnect a user session. These two configurations enable Cisco ISE to apply the updated policy to the user session without requiring the user to log out and log in again.

According to the source book, the steps to configure Dynamic Authorization and CoA are as follows1:

On Cisco ISE, navigate to Administration > Network Resources > Network Devices and select the network device that supports TrustSec.

On the Edit Network Device page, select the Advanced TrustSec Settings tab and check the Support for CoA check box.

On the same tab, select the appropriate CoA type from the drop-down list. The options are RADIUS Disconnect, Port Bounce, and Reauth.

Click Submit to save the changes.

On the network device, enter the global configuration mode and issue the command aaa server radius dynamic-author to enable Dynamic Authorization.

Optionally, you can specify the source interface, authentication key, and port number for the Dynamic Authorization messages.

Exit the global configuration mode and save the configuration.

 1: Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0, Module 4: Secure Connectivity, Lesson 4.2: Implementing TrustSec, Topic 4.2.3: Configuring TrustSec on Cisco ISE and Network Devices, pp. 4-83 to 4-85.

The Cisco Endpoint IoC feature is a powerful incident response tool for scanning of post-compromise indicators across multiple computers. Endpoint IoCs are imported through the console from OpenIOC-based files written to trigger on file properties such as name, size, hash, and other attributes and system properties such as process information, running services, and Windows Registry entries. The IoC syntax can be used by incident responders to find specific artifacts or use logic to create sophisticated, correlated detections for families of malware. Endpoint IoCs have the advantage of being portable to share within your organization or in industry vertical forums and mailing lists. The Endpoint IoC scanner is available in AMP for Endpoints Windows Connector versions 4 and higher. Running Endpoint IoC scans may require up to 1 GB of free drive space. The Endpoint IoC feature is based on the openioc.com framework, which is an open standard for sharing threat intelligence. References:

Cisco Endpoint IOC Attributes, User Guide

What Are Indicators of Compromise (IOC)? - Cisco, Security Indicators of Compromise

General questions about AMP - Cisco Community, Post by Cisco Employee

Explanation

Dynamic ARP inspection (DAI) is a security feature that validates ARP packets in a network. It intercepts, logs, and discards ARP packets with invalid IP-to-MAC address bindings. This capability protects the network from certain man-in-the-middle attacks. After enabling DAI, all ports become untrusted ports.
