The kind of API that is used with Cisco DNA Center to provision SSIDs, QoS policies, and update software versions on switches is the Intent API. The Intent API is a category of APIs that allows users to express their desired network outcomes or intents, such as creating a site, adding a device, or deploying a network profile. The Intent API then translates these intents into specific network configurations and commands, and applies them to the relevant network devices and services. The Intent API simplifies and automates the network provisioning and management process, and enables users to focus on the business objectives rather than the technical details. Some examples of Intent APIs are:

Site Management API: This API allows users to create, update, delete, and retrieve sites and buildings in Cisco DNA Center. A site is a logical grouping of network devices and services that share common characteristics, such as location, policies, or functions. A site can have one or more buildings, and a building can have one or more floors. Sites are used to organize and manage the network hierarchy and topology.

Network Settings API: This API allows users to configure and manage network-wide settings, such as global credentials, network discovery, IP address pools, DHCP and DNS servers, and SNMP settings. These settings are applied to all network devices and services that are managed by Cisco DNA Center.

Network Profile API: This API allows users to create, update, delete, and retrieve network profiles in Cisco DNA Center. A network profile is a collection of network settings and policies that define how a network segment or service should operate, such as SSIDs, QoS policies, security policies, and device roles. Network profiles are used to standardize and simplify the network configuration and deployment process, and to ensure consistency and compliance across the network.

Software Image Management API: This API allows users to manage the software images and versions of network devices that are managed by Cisco DNA Center. Users can import, export, delete, and retrieve software images, as well as assign them to network devices or device groups. Users can also schedule and monitor software image updates, and view the software image compliance status of network devices.

Endpoint-based security is the solution for performing signature-based application control, which is a method of identifying and blocking malicious applications based on their signatures or hashes. Signature-based application control is one of the features of endpoint security solutions, such as Cisco AMP for Endpoints1, that protect endpoints from known and unknown threats. Endpoint security solutions can also perform other functions, such as behavioral analysis, sandboxing, machine learning, and threat hunting, to provide comprehensive protection, detection, and response on the endpoint2. The other options are not scenarios where endpoint-based security is the solution. Inspecting encrypted traffic requires a network-based security solution, such as Cisco SSL Appliance3, that can decrypt and inspect the traffic for malicious content. Device profiling and authorization requires a network access control solution, such as Cisco Identity Services Engine4, that can identify and authenticate devices and users and enforce policies based on their roles and contexts. Inspecting a password-protected archive requires a file analysis solution, such as Cisco Threat Grid5, that can extract and analyze the contents of the archive for malware and indicators of compromise. References :=

Cisco AMP for Endpoints

What is Endpoint Security? How Does It Work?

Cisco SSL Appliance

Cisco Identity Services Engine

Cisco Threat Grid

Option D satisfies all three requirements: inline inspection, tunable PHI detection, and application-category scoping. Cisco Secure Access Real-Time DLP examines web traffic inline through the secure web gateway, whereas SaaS API DLP examines stored application data out of band. A custom PHI classification permits the organization to tune identifiers, proximity, and match-count thresholds to reduce false positives. The web profile can then limit enforcement to the Generative AI application category instead of inspecting all general browsing traffic. Option A is overly broad and retains default thresholds. Option B uses API-based DLP rather than the required real-time inspection. Option C uses vendor-domain lists and a built-in classification, which does not satisfy the requirement for proximity-based custom tuning. Cisco Generative AI controls

================

Microsegmentation is a technology that limits communication between nodes on the same network segment to individual applications by creating secure zones across cloud and data center environments. Microsegmentation isolates application workloads from one another and secures them individually with granular firewall policies based on a zero-trust security approach1. Microsegmentation can reduce the attack surface, prevent the lateral movement of threats, and strengthen regulatory compliance1.

Serverless infrastructure is a technology that allows developers to run code without provisioning or managing servers2. Serverless infrastructure does not limit communication between nodes on the same network segment to individual applications, but rather abstracts away the underlying infrastructure from the application logic.

SaaS deployment is a technology that delivers software applications over the internet as a service3. SaaS deployment does not limit communication between nodes on the same network segment to individual applications, but rather provides access to software applications from any device and location.

Machine-to-machine firewalling is a technology that controls the communication between machines or devices on a network. Machine-to-machine firewalling does not limit communication between nodes on the same network segment to individual applications, but rather applies rules to the traffic between machines or devices based on their IP addresses, ports, protocols, or other criteria.

References :=

What Is Micro-Segmentation? - Cisco

What is serverless?

What is SaaS?

[Machine-to-Machine Firewalling]

The WSA uses a root certificate and a private key to decrypt HTTPS traffic. The root certificate must reside in the trusted store of the WSA, and it must be able to sign server certificates on the fly. The server certificates that the WSA generates must contain a SAN (Subject Alternative Name) field, which specifies the hostnames or IP addresses that the certificate is valid for. The SAN field is required by modern browsers and applications to verify the identity of the server. If the WSA does not include a SAN field in the server certificate, the browser or application may reject the connection or display a warning message.

The other options are not correct because:

A. The current date is not a criterion for the WSA to use a certificate to decrypt application traffic. The WSA checks the validity period of the certificate, which includes the start date and the end date. The current date must be within the validity period, but it does not have to be the same as the start date or the end date.

C. The root certificate that the WSA uses to decrypt HTTPS traffic does not have to reside in the trusted store of the endpoint. However, the endpoint must trust the root certificate in order to accept the server certificate that the WSA generates. This can be achieved by manually installing the root certificate on the endpoint, or by using a group policy or a certificate management system to distribute the root certificate to the endpoints.

D. The root certificate that the WSA uses to decrypt HTTPS traffic does not have to be signed by an internal CA. The WSA can generate its own self-signed root certificate, or it can use a root certificate that is signed by an external CA. However, the root certificate must be trusted by the endpoints, as explained in option C.

References := : WSA Certificate Usage for HTTPS Decryption : [User Guide for AsyncOS 12.0 for Cisco Web Security Appliances - GD (General Deployment) - Create Decryption Policies to Control HTTPS Traffic]

In transparent mode, the WSA can handle both explicit and transparent HTTP requests, depending on how the client browser is configured. The WSA must pretend to be the origin content server for transparent requests, since the client is unaware of the existence of a proxy1. WCCP v2 is a protocol that allows a WCCP-enabled device (such as a router or a switch) to redirect traffic to the WSA based on certain criteria, such as destination port 802. This way, the client does not need to configure a proxy or a PAC file in the browser. The other options are false because they are either required for explicit mode or not supported by the WSA. References :=

What is the difference between transparent and forward proxy mode?

Configure Transparent Redirection With WCCP in Order to Support HTTP, HTTPS, and Native FTP Traffic

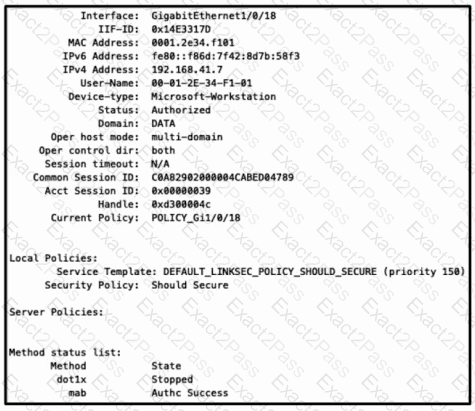

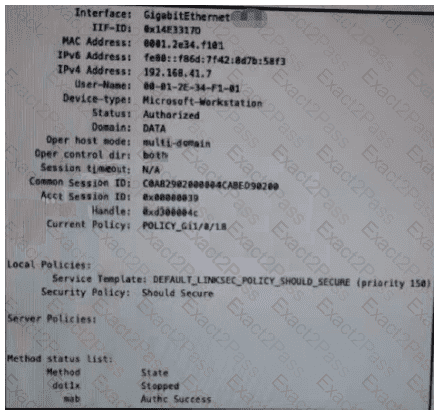

DHCP option 82 is a feature that allows the network access device (NAD) to insert additional information into the DHCP request packet from the endpoint. This information can include the switch ID, port number, VLAN ID, and other attributes that can help Cisco ISE to identify and profile the endpoint. Cisco ISE can use DHCP option 82 to assign the endpoint to the appropriate identity group, policy, and authorization profile. DHCP option 82 is also useful to prevent rogue DHCP servers from assigning IP addresses to endpoints, as Cisco ISE can verify the legitimacy of the DHCP request based on the option 82 data. To use DHCP option 82, the NAD must be configured to enable this feature and send the option 82 data to Cisco ISE. Cisco ISE must also be configured to accept and parse the option 82 data from the NAD. For more details on how to configure DHCP option 82 on Cisco ISE and NAD, see the references below. References:

Configuring the DHCP Probe

Securing Your Network From DHCP Risks

Can we use ISE as DHCP/DNS server to prevent guest traffic using …

Explanation

Explanation

Cisco IOS public key infrastructure (PKI) provides certificate management to support security protocols such as IP Security (IPSec), secure shell (SSH), and secure socket layer (SSL). This module identifies and describes concepts that are needed to understand, plan for, and implement a PKI.

A PKI is composed of the following entities: …

– A distribution mechanism (such as Lightweight Directory Access Protocol [LDAP] or HTTP) for certificate revocation lists (CRLs)

A DoS (Denial of Service) attack is a type of cyberattack that aims to disrupt the normal functioning of a server, service, or network by overwhelming it with a large amount of traffic or requests. A DoS attack typically uses a single computer or device to launch the attack, sending TCP (Transmission Control Protocol) or UDP (User Datagram Protocol) packets to the target server. TCP and UDP are two common protocols used to send data over the internet. TCP packets require a connection to be established between the sender and the receiver, and ensure that the data is delivered reliably and in order. UDP packets do not require a connection, and do not guarantee the delivery or order of the data. Both TCP and UDP packets can be used to flood a server with requests, consuming its resources and bandwidth, and preventing legitimate users from accessing the service.

A DDoS (Distributed Denial of Service) attack is a type of DoS attack that uses multiple computers or devices to launch the attack, creating a large network of attackers that can generate more traffic or requests than a single source. A DDoS attack often involves a botnet, which is a network of compromised computers or devices that are controlled by a malicious actor, usually through malware or hacking. The botnet can send TCP or UDP packets to the target server from different locations and IP addresses, making it harder to trace and block the attack. A DDoS attack can also target multiple servers or services that are distributed over a LAN (Local Area Network), such as a web hosting service or a cloud computing platform, affecting the availability and performance of the entire network.

The main difference between a DoS attack and a DDoS attack is the number and diversity of the sources that are involved in the attack. A DoS attack comes from a single source, while a DDoS attack comes from multiple sources. This makes a DDoS attack more powerful, faster, and harder to stop than a DoS attack.

To achieve the goal of excluding some servers from the VPN tunnel and accessing them directly, the engineer must modify the group policy that is applied to the remote access VPN users. The group policy contains the settings for split tunneling, which is a feature that allows the VPN client to route some traffic through the VPN tunnel and some traffic directly to the internet. Split tunneling can be configured based on the destination IP address, the application, or the domain name of the traffic. By modifying the group policy, the engineer can specify which servers or networks should be excluded from the VPN tunnel and accessed directly by the VPN client. This can improve the performance and efficiency of the VPN connection, as well as reduce the load on the VPN gateway and the corporate network. However, split tunneling also introduces some security risks, such as exposing the VPN client to internet threats, bypassing the corporate firewall and security policies, and leaking sensitive data. Therefore, the engineer must carefully evaluate the trade-offs and best practices of using split tunneling for remote access VPNs. References :=

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0, Module 3: Secure Connectivity, Lesson 3.1: Implementing and Troubleshooting Remote Access VPN, Topic 3.1.4: Configure and Verify Remote Access VPN, Subtopic 3.1.4.2: Configure and Verify Split Tunneling

VPN Split Tunneling: What It Is & Pros and Cons

Cisco ASA - Enable Split Tunnel for Remote VPN Clients

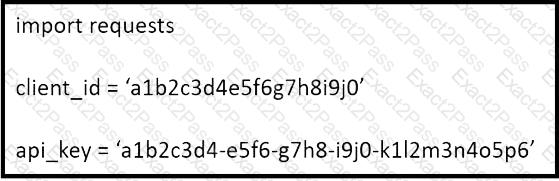

 The API key is used for HTTP authentication when working with APIs, including https://api.amp.cisco.com/v1/computers. It ensures that the user or system making the API request is authenticated and authorized to access the resources requested. The image you sent shows a Python code snippet that imports the requests module, assigns a client ID and an API key to variables, and uses them to make an API call. The API key is passed as a header parameter in the requests.get() function, which is a common way of implementing HTTP authentication. The other options are not correct because they do not describe the role of the API key. The client ID is a different parameter that identifies the user or system making the request, but it does not authenticate them. HTTP authorization is a process of granting or denying access to resources based on the user’s identity and permissions, but it is not the same as authentication. Importing requests is a Python statement that loads the requests module, which is a library for making HTTP requests, but it has nothing to do with the API key. References :=

Some possible references are:

Cisco AMP for Endpoints API

requests - HTTP for Humans

HTTP authentication - MDN Web Docs

The issue is that the engineer is using the wrong hashing algorithm to generate the hash for the custom detection policy. Cisco AMP for Endpoints requires the use of SHA-256 hashes for simple custom detections, as stated in the Configure a Simple Custom Detection List on the AMP for Endpoints Portal document. SHA-256 hashes are 64 hexadecimal characters long, while MD5 hashes are 32 hexadecimal characters long. Therefore, if the engineer tries to upload a hash created using MD5, the dashboard will indicate that the hash is not 64 characters and is non-zero, as shown in the image below:

To resolve the issue, the engineer should use a tool or a website that can generate SHA-256 hashes from files, such as this one, and upload the correct hash to the custom detection list. References : Configure a Simple Custom Detection List on the AMP for Endpoints Portal, Create an Advanced Custom Detection List in Cisco Secure Endpoint, Working with Advanced Malware Protection (AMP) for Endpoints
