Explanation

DNS Tunneling is a method of cyber attack that encodes the data of other programs or protocols in DNS

queries and responses. DNS tunneling often includes data payloads that can be added to an attacked DNS

server and used to control a remote server and applications.

Explanation

Posture is a service in Cisco Identity Services Engine (Cisco ISE) that allows you to check the state, also

known as posture, of all the endpoints that are connecting to a network for compliance with corporate security

policies.

A posture policy is a collection of posture requirements that are associated with one or more identity groups and

operating systems.

Posture-policy requirements can be set to mandatory, optional, or audit types in posture policies.

+ If a mandatory requirement fails, the user will be moved to Non-Compliant state

+ If an optional requirement fails, the user is allowed to skip the specified optional requirements and the user

is moved to Compliant state

This Qdid not clearly specify the type of posture policy requirement (mandatory or optional) is not met so the

user can be in Non-compliant or compliant state. But “noncompliant” is the best answer here.

CoA stands for Change of Authorization, which is a feature that allows a RADIUS server to adjust an active client session after it is authenticated. For example, CoA can be used to reauthenticate a client, terminate a client session, or change the VLAN or group policy of a client. CoA is supported by several RADIUS vendors, including Cisco ISE. CoA is defined in RFC 5176 and uses a pushed model, where the request originates from the RADIUS server and is sent to the network device that acts as a listener. CoA requests can have two possible response codes: CoA-ACK (acknowledgment) or CoA-NAK (non-acknowledgment). References :=

Some possible references are:

RADIUS Change of Authorization

Change of Authorization with RADIUS (CoA) on MR Access Points

Change of Authorization with RADIUS (CoA) on MS Switches

Technical Tip: Radius COA behavior

Explanation

Cisco Stealthwatch Cloud: Available as an SaaS product offer to provide visibility and threat detection within public cloud infrastructures such as Amazon Web Services (AWS), Microsoft Azure, and Google Cloud Platform (GCP).

Multifactor authentication (MFA) is an authentication method that requires the user to provide two or more verification factors to gain access to a resource such as an application, online account, or a VPN1. MFA is a core component of a strong identity and access management (IAM) policy. MFA can help prevent an attacker from stealing usernames and passwords of users within an organization by adding an extra layer of security beyond the traditional username and password. For example, a user may need to enter a one-time code sent to their phone or email, scan their fingerprint, or use a hardware token to prove their identity. This way, even if an attacker obtains the user’s credentials, they cannot access the resource without the second factor2.

The other options are not technologies that can help prevent an attacker from stealing usernames and passwords of users within an organization. RADIUS-based REAP is a protocol that allows wireless clients to authenticate with a RADIUS server, but it does not provide MFA3. Fingerprinting is a technique that identifies the operating system or application of a device based on its network characteristics, but it does not provide MFA4. Dynamic ARP Inspection is a security feature that prevents ARP spoofing attacks by validating ARP packets, but it does not provide MFA5.

References := 1: What is Multi-Factor Authentication (MFA)? | OneLogin(https://www.onelogin.com/learn/what-is-mfa) 2: What is: Multifactor Authentication - Microsoft Support(https://support.microsoft.com/en-us/topic/what-is-multifactor-authentication-e5e39437-121c-be60-d123-eda06bddf661) 3: Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0, Module 3: Securing the Network, Lesson 3.3: Secure Wireless Connectivity, Topic 3.3.1: Wireless Security Protocols, page 3-40. 4: Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0, Module 2: Securing the Cloud, Lesson 2.2: Cloud Security Assessment, Topic 2.2.1: Cloud Security Concepts, page 2-13. 5: Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0, Module 3: Securing the Network, Lesson 3.2: Secure Network Access, Topic 3.2.2: Layer 2 Security Features, page 3-19.

Device compliance checks are used to verify that the devices managed by Intune meet the security and configuration requirements defined by the organization. Device compliance checks can use various parameters to evaluate the device state, such as:

Endpoint protection software version: This parameter checks if the device has a valid and up-to-date antivirus or antimalware software installed and running. This parameter helps to protect the device from malicious software and network attacks.

Device operating system version: This parameter checks if the device has the minimum or maximum operating system version supported by the organization. This parameter helps to ensure that the device has the latest security patches and features available.

Windows registry values: This parameter checks if the device has specific registry values configured or not. This parameter helps to enforce custom settings or policies on the device that are not covered by other parameters.

DHCP snooping checks: This parameter checks if the device is connected to a trusted network that uses DHCP snooping to prevent rogue DHCP servers from assigning IP addresses to the device. This parameter helps to prevent man-in-the-middle attacks and network spoofing.

DNS integrity checks: This parameter checks if the device is using a secure and reliable DNS server that can resolve domain names correctly and prevent DNS hijacking or poisoning. This parameter helps to prevent phishing and redirection attacks.

References :=

Some possible references are:

Device compliance policies in Microsoft Intune | Microsoft Learn, Microsoft

Monitor results of your device compliance policies in Microsoft Intune | Microsoft Learn, Microsoft

Check device access | Microsoft Learn, Microsoft

Ensure device compliance - Configuration Manager | Microsoft Learn, Microsoft

Cross-site scripting (XSS) is a web security vulnerability that allows an attacker to inject malicious code into a web page that is viewed by other users. XSS can compromise the user’s interaction with the web application, steal sensitive data, perform unauthorized actions, and more. To prevent XSS, web developers need to apply various defensive techniques to ensure that user-supplied data is not interpreted as code by the browser. Two of these techniques are:

Incorporate contextual output encoding/escaping: This means that any user-supplied data that is displayed on the web page should be properly encoded or escaped according to the context where it appears. For example, if the data is inserted into an HTML attribute, it should be HTML attribute encoded; if the data is inserted into a JavaScript string, it should be JavaScript string encoded; and so on. This prevents the data from breaking out of its intended context and being executed as code by the browser. Output encoding should be done by using a reliable library or framework that supports different contexts and encodings.

Run untrusted HTML input through an HTML sanitization engine: This means that any user-supplied data that is intended to contain HTML markup should be filtered and validated by a sanitization engine that removes or escapes any potentially dangerous elements, attributes, or scripts. This prevents the attacker from injecting malicious HTML code that can execute scripts, load external resources, redirect the user, or perform other malicious actions. HTML sanitization should be done by using a well-tested and maintained library or framework that follows the best practices and standards for HTML filtering.

References :=

[Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0], Module 5: Securing the Cloud, Lesson 5.2: Web Application Security, Topic 5.2.2: Cross-Site Scripting (XSS)

Cross Site Scripting Prevention Cheat Sheet - OWASP

What is cross-site scripting (XSS) and how to prevent it? - Web Security Academy

Explanation

Explanation

The following are the prerequisites to integrate Active Directory with Cisco ISE.

+ Use the Network Time Protocol (NTP) server settings to synchronize the time between the Cisco ISE server

and Active Directory. You can configure NTP settings from Cisco ISE CLI.

+ If your Active Directory structure has multidomain forest or is divided into multiple forests, ensure that trust

relationships exist between the domain to which Cisco ISE is connected and the other domains that have user

and machine information to which you need access. For more information on establishing trust relationships,

refer to Microsoft Active Directory documentation.

+ You must have at least one global catalog server operational and accessible by Cisco ISE, in the domain to

which you are joining Cisco ISE.

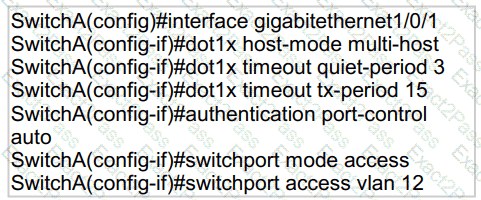

The dot1x pae authenticator command enables 802.1x authentication on the port and configures the port as an authenticator. This command is required for the port to initiate the authentication process with the connected client. Without this command, the port will not send EAPOL packets to the client and will not receive the client credentials. Therefore, the client will not be authenticated and will remain in the unauthorized state. The other options are not mandatory for 802.1x authentication, although they can be used to modify the default behavior of the port. For example, authentication open allows the port to grant access to the client before authentication, dot1x reauthentication enables periodic reauthentication of the client, and cisp enable enables Cisco Identity Services Protocol (CISP) on the port. References: Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0, Module 5: Secure Network Access, Lesson 5.1: Implementing 802.1X Authentication, Topic 5.1.2: Configuring 802.1X Authentication, Page 5-9.

Web usage controls are a feature of Cisco Web Security Appliance (WSA) that allow administrators to define and enforce policies for web access based on URL categories. URL categories are groups of websites that share a common theme or content, such as news, sports, entertainment, etc. Cisco WSA uses the Cisco Dynamic Content Analysis Engine and the Talos Security Intelligence and Research Group to provide accurate and up-to-date URL categorization. Administrators can use the web usage controls to allow, block, warn, or monitor web requests based on the URL category of the destination website. They can also create custom URL categories to include or exclude specific domains or URLs from the predefined categories. Web usage controls help administrators to control web traffic, enhance security, improve productivity, and comply with regulatory and organizational requirements. References :=

Some possible references are:

Web Usage Controls - Cisco Web Security Appliance User Guide, Cisco

Cisco Web Usage Control Filtering Categories Data Sheet, Cisco

Define Custom URL Categories in WSA, Cisco

An active/active FlexVPN configuration allows for multiple routers or VRFs to act as hubs for different VPN groups, providing load balancing and redundancy1. This is useful when the VPN deployment has a large number of spokes or different security policies for different groups of spokes. DMVPN, on the other hand, only supports a single hub or a pair of hubs in active/standby mode for each VPN group2. This limits the scalability and flexibility of DMVPN deployments. Therefore, an engineer would opt for an active/active FlexVPN configuration as opposed to DMVPN when multiple routers or VRFs are required. References :=

Cisco FlexVPN: Benefits and Best Practices

Cisco DMVPN Design Guide

To route inbound email to Cisco Cloud Email Security (CES), the engineer must modify the MX record of the domain to point to the CES hostname or IP address. The MX record is a DNS record that specifies the mail server responsible for accepting email messages on behalf of a domain name. By changing the MX record, the engineer can direct all incoming email traffic to the CES gateway, where it can be filtered and scanned for threats before being delivered to the Microsoft Office 365 mailboxes. The other options are not relevant for this task. A CNAME record is a DNS record that maps an alias name to a canonical name. An SPF record is a DNS record that identifies the authorized senders of email for a domain. A DKIM record is a DNS record that contains a public key for verifying the digital signature of email messages sent from a domain. References :=

Some possible references for this question are:

Configure Microsoft 365 with Secure Email

Configure Microsoft 365 with Secure Email - More

[Cisco Cloud Email Security - Configuration Guide]

Explanation

Explanation

Storm control prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on one of the physical interfaces. A LAN storm occurs when packets flood the LAN, creating excessive traffic and degrading network performance. Errors in the protocol-stack implementation, mistakes in network configurations, or users issuing a denial-of-service attack can cause a storm.

By using the “storm-control broadcast level [falling-threshold]” we can limit the broadcast traffic on the switch.

Explanation

Explanation

To let FMC manages FTD, first we need to add manager from the FTD and assign a register key of your

choice. The command configure manager add 1.1.1.2 the_registration_key_you_want, where 1.1.1.2 is the IP

address of the FMC, you need to use the same registration key in FMC when adding this FTD as a managed

device.
