Explanation

Vendors, security researchers, and vulnerability coordination centers typically assign vulnerabilities an identifier that’s disclosed to the public. This identifier is known as the Common Vulnerabilities and Exposures (CVE).

CVE is an industry-wide standard. CVE is sponsored by US-CERT, the office of Cybersecurity and

Communications at the U.S. Department of Homeland Security.

The goal of CVE is to make it’s easier to share data across tools, vulnerability repositories, and security

services.

Explanation

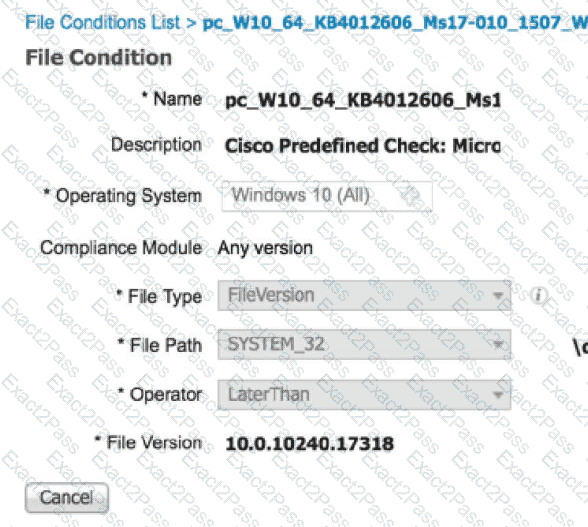

A posture policy is a collection of posture requirements, which are associated with one or more identity groups, and operating systems. We can configure ISE to check for the Windows patch at Work Centers > Posture > Posture Elements > Conditions > File.

In this example, we are going to use the predefined file check to ensure that our Windows 10 clients have the critical security patch installed to prevent the Wanna Cry malware.

Explanation

Explanation

Other features are dependent on SSL Decryption functionality, which requires the Cisco Umbrella root

certificate. Having the SSL Decryption feature improves:

Custom URL Blocking—Required to block the HTTPS version of a URL.

…

Umbrella’s Block Page and Block Page Bypass features present an SSL certificate to browsers that make

connections to HTTPS sites. This SSL certificate matches the requested site but will be signed by the Cisco Umbrella certificate authority (CA). If the CA is not trusted by your browser, an error page may be displayed.

Typical errors include “The security certificate presented by this website was not issued by a trusted certificate authority” (Internet Explorer), “The site’s security certificate is not trusted!” (Google Chrome) or “This

Connection is Untrusted” (Mozilla Firefox). Although the error page is expected, the message displayed can be confusing and you may wish to prevent it from appearing.

To avoid these error pages, install the Cisco Umbrella root certificate into your browser or the browsers of your users—if you’re a network admin.

CoA stands for Change of Authorization, which is a feature that allows a RADIUS server to adjust an active client session after it is authenticated. For example, CoA can be used to reauthenticate a client, terminate a client session, or change the VLAN or group policy of a client. CoA is supported by several RADIUS vendors, including Cisco ISE. CoA is defined in RFC 5176 and uses a pushed model, where the request originates from the RADIUS server and is sent to the network device that acts as a listener. CoA requests can have two possible response codes: CoA-ACK (acknowledgment) or CoA-NAK (non-acknowledgment). References :=

Some possible references are:

RADIUS Change of Authorization

Change of Authorization with RADIUS (CoA) on MR Access Points

Change of Authorization with RADIUS (CoA) on MS Switches

Technical Tip: Radius COA behavior

 Cisco AnyConnect with Umbrella Roaming Security module protects a user from a phishing attack by enforcing security at the DNS layer and blocking malicious domains that are used for phishing campaigns. The Umbrella Roaming Security module integrates with the Cisco AnyConnect client and provides always-on security even when no VPN is active. The Umbrella Roaming Security module can replace the existing Cisco Umbrella roaming client or be part of a new AnyConnect deployment12.

Cisco Identity Services Engine (ISE) is not an endpoint solution, but a network access control and policy enforcement platform that can integrate with AnyConnect for posture assessment and compliance3. Cisco AnyConnect with ISE Posture module is used to check the compliance status of the endpoint device and apply the appropriate network access policy based on the posture result4. Cisco AnyConnect with Network Access Manager module is used to manage the network connections and profiles of the endpoint device and support various authentication methods5. Neither of these modules directly protect the user from a phishing attack.

References :=

Roaming Client: Umbrella Roaming Security (Integration with AnyConnect)

Secure Umbrella Roaming: Cisco Secure Client (Formerly AnyConnect)

Cisco Identity Services Engine

[Cisco AnyConnect Secure Mobility Client Administrator Guide, Release 4.9 - Posture Module]

[Cisco AnyConnect Secure Mobility Client Administrator Guide, Release 4.9 - Network Access Manager Module]

To migrate a Cisco WSA virtual appliance from one physical host to another physical host by using VMware vMotion, both hosts must have access to the same defined network. This is because vMotion preserves the network identity and connections of the virtual machine, and requires that the source and destination hosts have compatible CPUs and shared storage1. The hosts do not need to run the same or different versions of Cisco AsyncOS, as long as they meet the minimum requirements for the virtual appliance2. The hosts do not need to use a different datastore than the virtual appliance, as vMotion can migrate virtual machines across datastores as well3. References: 1: VMware vMotion: Live Migration of Virtual Machines and Storage 2: Cisco Secure Web Appliance Virtual - Cisco 3: Migrating to Virtual SMA from Physical - Cisco Community

One of the main reasons why a user would choose an on-premises ESA versus the CES solution is to have more control over the sensitive data that flows through the email system. With an on-premises ESA, the user can ensure that the data is stored and processed within their own network and data center, and that they comply with any regulatory or organizational requirements for data security and privacy. With a CES solution, the user would have to trust Cisco to handle the data in their cloud infrastructure, and to adhere to the service level agreements and security policies that are agreed upon. Some users may not be comfortable with this level of outsourcing, especially if they have strict data governance or compliance needs12. References: 1: Physical ESA vs Cloud ESA - Cisco Community 2: Cisco Email Security Appliance - Data Sheet

Explanation

An example of configuring a NetFlow exporter is shown below:

flow exporter Exporter

destination 192.168.100.22

transport udp 2055

SSL decryption allows the intelligent proxy to inspect traffic over HTTPS. Some websites may use self-signed certificates or certificates that are not trusted by the user’s device. This may cause the browser to display a warning or an error message when accessing those websites through the intelligent proxy. To avoid this, the user’s device needs to trust the Umbrella root CA, which is the certificate authority that signs the certificates for the websites that are proxied by Umbrella. By importing the Umbrella root CA into the trusted root store on the user’s device, the browser will recognize the certificates as valid and will not alert the end-users12. References: 1: Enable SSL Decryption - Umbrella User Guide 2: Intelligent Proxy and SSL Decryption with Cisco Umbrella

 Cisco Cloudlock is a cloud-native security solution that secures public, private, hybrid, and community clouds. It provides visibility, compliance, threat protection, and data security for cloud applications and environments. Cisco Cloudlock integrates with various cloud platforms and services, such as AWS, Azure, Google Cloud, Office 365, Salesforce, Dropbox, and more. Cisco Cloudlock monitors user activities, configurations, and sensitive data across the cloud, and alerts or blocks any violations of policies or regulations. Cisco Cloudlock also leverages user and entity behavior analytics (UEBA) to detect and respond to anomalous or malicious behaviors in the cloud. Cisco Cloudlock helps organizations protect their cloud assets and data, while enabling them to embrace the benefits of cloud computing. References :=

Cloud and Application Security - Cisco

Cloud Security Products and Solutions - Cisco

What Is Cloud Security? - Cisco

[Cisco Cloudlock: Cloud-Native CASB and Cloud Cybersecurity Platform]

To block certain URLs based on the “Chat and Instant Messaging” category, the network administrator should select a reputation score of 5. A reputation score is a numerical value that indicates the likelihood of a URL being malicious or unwanted. The lower the score, the higher the risk. A score of 5 means that the URL is suspicious or potentially harmful, and should be blocked or inspected12. A score of 3 means that the URL is unknown or unverified, and may be allowed or blocked depending on the policy settings12. A score of 10 means that the URL is trustworthy or benign, and should be allowed12. A score of 1 means that the URL is malicious or high-risk, and should be blocked12. Therefore, a score of 5 is the most appropriate to block the “Chat and Instant Messaging” category, which may contain unwanted or problematic websites. References:

Reputation score, section “Reputation score”.

Web content filtering, section “What is web content filtering?”.

https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/security/s1/sec-s1-xe-3se-3850-cr-book/sec-s1-xe-3se-3850-cr-book_chapter_01.html#wp3404908137

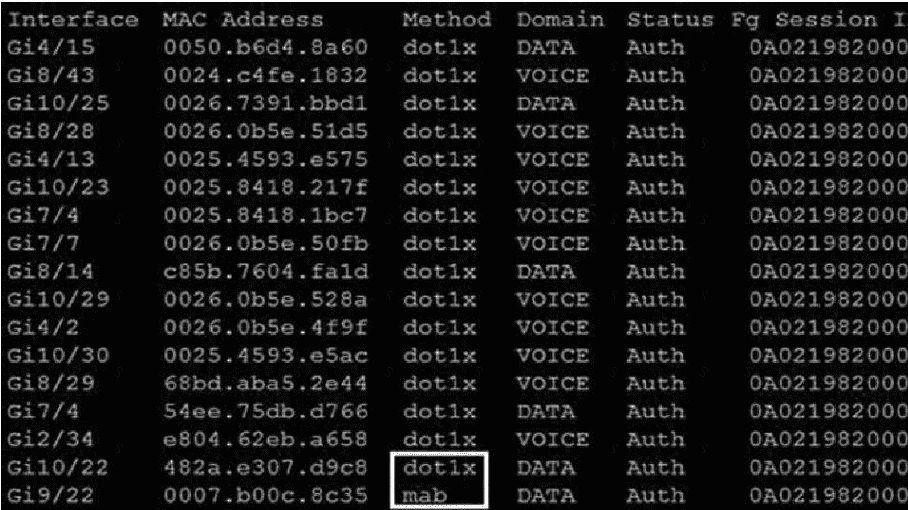

Displaying the Summary of All Auth Manager Sessions on the Switch

Enter the following:

Switch# show authentication sessions

Interface MAC Address Method Domain Status Session ID

Gi1/48 0015.63b0.f676 dot1x DATA Authz Success 0A3462B1000000102983C05C

Gi1/5 000f.23c4.a401 mab DATA Authz Success 0A3462B10000000D24F80B58

Gi1/5 0014.bf5d.d26d dot1x DATA Authz Success 0A3462B10000000E29811B94

 The strongest security possible for SNMPv3 requires both authentication and encryption, which is achieved by using the priv security level. Authentication ensures that the message is from a valid source, and encryption scrambles the content of the packet to prevent it from being learned by an unauthorized source. The auth sha and priv aes 256 parameters specify the algorithms used for authentication and encryption, respectively. SHA is more secure than MD5, and AES 256 is more secure than DES or 3DES. Therefore, option D is the correct answer, as it uses the priv security level, the SHA algorithm for authentication, and the AES 256 algorithm for encryption. The other options either use a lower security level (noauth or authNoPriv), a weaker encryption algorithm (des or 3des), or no encryption at all. References :=

SNMP Configuration Guide, Cisco IOS XE Release 3SE (Catalyst 3850 Switches) - SNMP Version 3

Configuration Template for SNMPv3 - Cisco Community

SNMP Version 3 - Cisco
