Explanation

Explanation

Cisco’s DNA Center is the only centralized network management system to bring all of this functionality into a single pane of glass.

The function of Cisco Cloudlock for data security is data loss prevention (DLP). Cisco Cloudlock is a cloud-native cloud access security broker (CASB) that helps you move to the cloud safely. It protects your cloud users, data, and apps. Cloudlock’s simple, open, and automated approach uses APIs to manage the risks in your cloud app ecosystem1. One of the key features of Cloudlock is its DLP technology, which continuously monitors cloud environments to detect and secure sensitive information. It provides countless out-of-the-box policies as well as highly tunable custom policies. You can use Cloudlock’s DLP to prevent data breaches, comply with regulations, and enforce data governance across SaaS, PaaS, and IaaS platforms2. References: 1: Cisco Cloudlock - Cisco2: Cloudlock: Cloud User Security - Cisco Umbrella.

A Cisco Umbrella virtual appliance (VA) is a lightweight virtual machine that acts as a DNS forwarder in your network. It forwards internal DNS queries to Umbrella and provides Umbrella with the internal IP address and hostname of the device that made the request. This allows Umbrella to apply policies and report on traffic based on the subnet, hostname, or user identity of the device1. The other options are not relevant for this scenario. Tenant control features are used to limit access to specific instances of cloud applications, such as Microsoft 365 or Google G Suite2. The Microsoft Active Directory Connector is used to provision users and groups from Active Directory to Umbrella, not to provide IP address information3. An internal domain is a domain that is resolved by your own DNS server, not by Umbrella, and is used to bypass Umbrella for domains that are only accessible within your network4. References:

1: Deploy Virtual Appliances - Umbrella User Guide

2: Manage Tenant Controls - Umbrella SIG User Guide

3: Connect Active Directory to Umbrella to Provision User and Groups

4: Domain Management - Umbrella User Guide

 IOS zone-based firewalls (ZBFW) are a feature that provides stateful firewall policies between groups of interfaces known as zones. A zone is a logical grouping of one or more interfaces that have similar security requirements. A zone can be applied to physical interfaces, subinterfaces, port channels, VLAN interfaces, or tunnel interfaces. However, an interface can be assigned only to one zone, and it cannot be shared between zones. This is because the ZBFW policy is applied between zones, not interfaces, and it controls the bidirectional traffic flow between them. Therefore, an interface can belong to only one zone at a time, and it must be removed from one zone before it can be added to another zone. This ensures that the firewall policy is consistent and unambiguous for each interface.

References :=

Security Configuration Guide: Zone-Based Policy Firewall, Cisco IOS XE Gibraltar 16.12.x, Configuring Zones

Understand the Zone-Based Policy Firewall Design, Zone-Based Policy Overview

IOS Zone Based Firewall Step-by-Step Basic Configuration, Zone Based Firewall Vs CBAC

Device compliance is the state of devices meeting the standards and regulations for the industry or organization. Device compliance policies define the rules and settings that users and devices must meet to be compliant, such as minimum operating systems, disk encryption, or Secure Boot. Device compliance policies can also include actions that apply to devices that are noncompliant, such as alerting users, blocking access, or wiping data. Device compliance policies can be integrated with Conditional Access, which can enforce attribute-driven policies based on the compliance status of the device. Attribute-driven policies are policies that use attributes of the device, user, or resource to determine the level of access or protection. For example, a policy can allow access to a resource only if the device is compliant, the user is in a certain group, and the resource is in a certain location. Attribute-driven policies provide more granular and flexible control over access and security than traditional policies based on roles or permissions. Therefore, the benefit of performing device compliance is providing attribute-driven policies, which is option D. References:

Device compliance policies in Microsoft Intune

Device Compliance settings for Windows 10/11 in Intune

Device Compliance: What it is and why you should use it

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0

The Cisco Identity Services Engine (ISE) posture module provides a service that allows you to check the compliance of endpoints with corporate security policies. This service consists of three main components: client provisioning, posture policy, and authorization policy. Client provisioning ensures that the endpoints receive the appropriate posture agent, such as the AnyConnect ISE Posture Agent or the Network Admission Control (NAC) Agent. Posture policy defines the conditions and requirements that the endpoints must meet to be considered compliant, such as having the latest antivirus updates or patches installed. Authorization policy determines the level of network access granted to the endpoints based on their posture assessment results, such as allowing full access, limited access, or quarantine.

The two actions that the Cisco ISE posture module provides that ensure endpoint security are:

The latest antivirus updates are applied before access is allowed. This action prevents malware infections and protects the network from potential threats. The posture policy can include predefined or custom conditions that check the antivirus status of the endpoints, such as the product name, version, definition date, and scan result. If the endpoint does not meet the antivirus requirement, the posture agent can trigger a remediation action, such as launching the antivirus update or scan, before allowing network access.

Patch management remediation is performed. This action ensures that the endpoints have the latest security patches installed and are not vulnerable to known exploits. The posture policy can include predefined or custom conditions that check the patch status of the endpoints, such as the operating system, service pack, hotfix, or update. If the endpoint does not meet the patch requirement, the posture agent can trigger a remediation action, such as redirecting the endpoint to a patch management server or launching the patch installation, before allowing network access.

References :=

Cisco Identity Services Engine Administrator Guide, Release 2.2 - Configure Client Posture Policies

Configuring posture services with the Cisco Identity Services Engine

Cisco Identity Services Engine Administrator Guide, Release 2.0 - Posture Policy

Explanation

The Firepower System uses network discovery and identity policies to collect host, application, and user data for traffic on your network. You can use certain types of discovery and identity data to build a comprehensive map of your network assets, perform forensic analysis, behavioral profiling, access control, and mitigate and respond to the vulnerabilities and exploits to which your organization is susceptible.

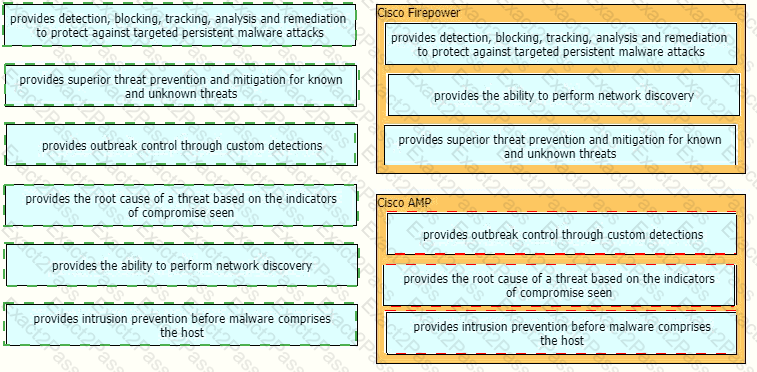

The Cisco Advanced Malware Protection (AMP) solution enables you to detect and block malware, continuously analyze for malware, and get retrospective alerts. AMP for Networks delivers network-based advanced malware protection that goes beyond point-in-time detection to protect your organization across the entire attack continuum – before, during, and after an attack. Designed for Cisco Firepower® network threat appliances, AMP for Networks detects, blocks, tracks, and contains malware threats across multiple threat vectors within a single system. It also provides the visibility and control necessary to protect your organization against highly sophisticated, targeted, zero-day, and persistent advanced malware threats.

create an application control blocked applications list. This option allows you to specify a list of files that you want to prevent from running on the endpoints that have the AMP connector installed. The files are identified by their SHA-256 hashes, and you can upload them individually or in a batch. The files are not quarantined, but they are blocked from execution and reported as events in the AMP console1. This option is different from the simple custom detection list, which is used to detect and quarantine specific files that are considered malicious2. The advanced custom detection list is also used to detect and quarantine files, but it allows you to specify more criteria such as file size, file name, and file path3. The IP block and allow lists are used to control the network traffic to and from the endpoints, not the file execution4. References: 1: Configure Application Control on the AMP for Endpoints Portal 2: Configure a Simple Custom Detection List on the AMP for Endpoints Portal 3: [Configure an Advanced Custom Detection List on the AMP for Endpoints Portal] 4: [Configure IP Block and Allow Lists on the AMP for Endpoints Portal]

Explanation

Umbrella Roaming is a cloud-delivered security service for Cisco’s next-generation firewall. It protects your employees even when they are off the VPN.

Cisco Stealthwatch Cloud is a cloud-delivered and SaaS-based solution that provides visibility and threat detection across the AWS network. It does not require any software agents to be installed on the AWS instances, and it relies on AWS VPC flow logs to collect network traffic metadata. Cisco Stealthwatch Cloud analyzes the flow logs using machine learning and behavioral modeling to detect anomalies and threats, such as data exfiltration, lateral movement, reconnaissance, and compromised instances. Cisco Stealthwatch Cloud also provides contextual information and actionable alerts to help users respond to incidents and remediate issues.

Cisco Umbrella is a cloud-delivered and SaaS-based solution that provides DNS-layer security and web filtering for internet traffic. It does not provide visibility and threat detection for internal AWS network traffic, and it requires software agents to be installed on the endpoints or network devices to enforce policies and redirect DNS requests.

NetFlow collectors are devices or software applications that collect and analyze NetFlow records, which are generated by network devices to capture information about IP traffic flows. NetFlow collectors can provide visibility and threat detection for network traffic, but they are not cloud-delivered or SaaS-based solutions. They also require NetFlow exporters to be configured on the network devices, which may not be supported by AWS.

Cisco Cloudlock is a cloud-delivered and SaaS-based solution that provides cloud security posture management (CSPM) and cloud access security broker (CASB) capabilities for cloud applications and environments. It does not provide visibility and threat detection for AWS network traffic, and it does not rely on AWS VPC flow logs. It focuses on protecting cloud data, users, and configurations from misconfigurations, compliance violations, and malicious activities. References :=

Cisco Stealthwatch Cloud for AWS

Cisco Umbrella

NetFlow

[Cisco Cloudlock]

The crypto isakmp key command is used to configure a preshared key for ISAKMP authentication between two peers. The address 0.0.0.0 indicates that the key is valid for any peer address. Therefore, the same command must be entered on hostB with the same password in order to establish the tunnel with hostA. Changing the protocol to ikev2, using a different password, or changing the password to the default will not solve the problem, as they will create a mismatch in the authentication parameters. References:

Dynamic Multipoint VPN Configuration Guide, Cisco IOS Release 15M & T, section “Prerequisites for Dynamic Multipoint VPN (DMVPN)”

DMVPN - Concepts & Configuration, section “DMVPN - What is it?”

DMVPN Hub as the CA Server for the DMVPN Network Configuration Example, section “Prerequisites”

Microsegmentation is a network security strategy that breaks a network into smaller network “segments” to boost security and control over data traffic1. Unlike traditional network security, which primarily defends the network’s outer boundaries, microsegmentation focuses on securing individual workloads and devices within the network2. Microsegmentation uses an allow-list model to significantly reduce the attack surface across different workload types and environments3. Microsegmentation is also referred to as application segmentation or east-west segmentation in a multicloud data center4.

Option B is the correct description of microsegmentation, as it captures the essence of applying a zero-trust model and specifying how applications on different servers or containers can communicate. Option A is incorrect, as deploying a container orchestration platform is not a sufficient condition for microsegmentation. Option C is incorrect, as deploying host-based firewall rules is not a necessary condition for microsegmentation. Option D is incorrect, as implementing private VLAN segmentation is a different technique from microsegmentation. References: An Introduction to Microsegmentation in Network Security. What Is Micro-Segmentation? - Cisco. What Is Microsegmentation? - Palo Alto Networks. What Is Microsegmentation in Networking? Beginner’s Guide.

Explanation

The Cisco Umbrella Multi-Org console has the ability to upload, store, and archive traffic activity logs from your organizations’ Umbrella dashboards to the cloud through Amazon S3. CSV formatted Umbrella logs are compressed (gzip) and uploaded every ten minutes so that there’s a minimum of delay between traffic from the organization’s Umbrella dashboard being logged and then being available to download from an S3 bucket.

By having your organizations’ logs uploaded to an S3 bucket, you can then download logs automatically to keep in perpetuity in backup storage.
