The difference between GRE over IPsec and IPsec with crypto map is that GRE (Generic Routing Encapsulation) over IPsec can encapsulate and transport non-IP protocols across an IP network, whereas IPsec with crypto map is typically used for IP traffic. GRE tunnels wrapped in IPsec provide a way to transport multicast traffic and other protocol types across an IPsec VPN, offering greater flexibility in the types of traffic that can be secured.

A destination list is a list of internet destinations: domains, URLs, and CIDRs. To control identity access to specific destinations, you can add destination lists to Umbrella and then select them when configuring your Web and DNS policies12. When you add or edit a destination list, the changes are applied immediately if the destination list is part of a policy3. This means that any identities that are associated with the policy will be affected by the changes in the destination list. You do not need to save the configuration or remove the destination list from the policy to apply the changes. However, you do need to have the appropriate user role to manage destination lists. The user role of Block Page Bypass or higher is needed to perform these changes4. References :=

Manage Destination Lists - Umbrella User Guide

Manage Destination Lists - Umbrella SIG User Guide

Add a Destination List - Umbrella User Guide

Add a DNS Destination List - Umbrella SIG User Guide

 To enable CWA for wireless guest access, the ISE engineer needs to configure the following steps on the ISE server:

Create a guest portal with the desired settings and appearance.

Create an authorization profile that references the guest portal and the DACL name for the Airespace ACL configured on the WLC. The DACL name must match the name of the ACL on the WLC exactly. The authorization profile also needs to have the common tasks of Web Redirection and Web Authentication enabled.

Create an authorization policy that matches the unauthenticated devices based on the MAC address or other criteria and applies the authorization profile created in the previous step.

The DACL name is required for the WLC to apply the correct ACL to the guest endpoints and redirect them to the guest portal. Without the DACL name, the WLC will not know which ACL to use and may grant full guest access to the endpoints. Therefore, the correct answer is D.

References :=

Some possible references are:

Central Web Authentication (CWA) for guests with ISE

Understand And Troubleshoot Central Web-Authentication (CWA) In Guest Anchor Set-Up

Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide, Release 17.3.0 - Guest Access

Explanation

Explanation

The ASA and ASASM implementations of NetFlow Secure Event Logging (NSEL) provide the following major functions:

…

– Delays the export of flow-create events.

The Cisco ASA and the Cisco IOS router with Zone-Based Policy Firewall (ZFW) have different default behaviors when it comes to traffic filtering. The Cisco ASA follows a default deny-all policy that prohibits traffic between firewall security zones until an explicit policy is applied to allow desirable traffic1. The Cisco IOS router with ZFW, on the other hand, starts out by allowing all traffic, even on untrusted interfaces, until a zone-pair policy is applied to restrict or inspect traffic2. This means that the Cisco ASA provides a higher level of security by default, while the Cisco IOS router with ZFW requires more configuration to harden the router. However, the Cisco IOS router with ZFW also offers more flexibility and granularity in defining firewall policies, as well as more advanced features such as DMVPN, GET VPN, and Policy-Based Routing, which are not supported by the Cisco ASA23. References:

2: IOS Firewall vs. ASA - Cisco Community

1: Understand the Zone-Based Policy Firewall Design - Cisco

4: What is a functional difference between a Cisco ASA and a Cisco IOS router with Zone-based policy firewall?

5: What is a functional difference between a Cisco ASA and Cisco IOS router with Zone-based policy firewall?

3: Cisco Zone-Based Firewall Reporting – Plixer

Multifactor authentication (MFA) is a security measure that requires two or more proofs of identity to grant access to a resource, such as a username and password, a one-time code, a smart card, etc.1 MFA provides stronger protection than single-factor authentication (SFA), which only requires one proof of identity, such as a password. SFA can be compromised more easily by attackers who can guess, steal, or intercept passwords, or use phishing or social engineering techniques to trick users into revealing their credentials. MFA adds an extra layer of security that makes it harder for attackers to gain access, even if they have the password. MFA can also prevent unauthorized access from lost or stolen devices, as the attacker would need another factor to authenticate. MFA can also deter attackers from targeting an organization, as they would need to invest more time and resources to bypass the security measures. Therefore, organizations should migrate to a multifactor authentication strategy to enhance their security posture and protect their data and assets. References := 1: What is Multi-Factor Authentication (MFA)? - Auth0

 The management port on Cisco FMC is used to establish a secure connection with the managed Cisco FTD devices. If the default management port (8305) conflicts with other communications on the network, it must be changed on both the Cisco FMC and the Cisco FTD devices. This cannot be done automatically by the Cisco FMC, as it would lose connectivity with the devices. Therefore, the administrator must manually change the management port on the Cisco FMC and all the managed Cisco FTD devices using the command line interface (CLI). The steps to change the management port are as follows:

Log into the CLI of the Cisco FMC and the Cisco FTD devices using a console connection or SSH.

Enter the configure network {ipv4 | ipv6} manual ip_address netmask data-interfaces command to change the management port on the Cisco FMC. For example, configure network ipv4 manual 10.10.10.10 255.255.255.0 data-interfaces changes the management port to 10.10.10.10/24.

Enter the configure network {ipv4 | ipv6} manual ip_address netmask gateway management-only command to change the management port on the Cisco FTD devices. For example, configure network ipv4 manual 10.10.10.11 255.255.255.0 10.10.10.10 management-only changes the management port to 10.10.10.11/24 and sets the gateway to the Cisco FMC’s management port.

Save the configuration and restart the Cisco FMC and the Cisco FTD devices.

Verify the connectivity between the Cisco FMC and the Cisco FTD devices using the show managers command on the Cisco FTD devices and the show devices command on the Cisco FMC.

References :=

Firepower Management Center Device Configuration Guide, 7.1 - Device Management

Change management port fmc 1600 - Cisco Community

Solved: FMC 2120 FTD Management Only Port - Cisco Community

Change the FMC Access Interface from Management to Data

Dynamic ARP Inspection (DAI) is a security feature that validates ARP packets on untrusted interfaces by comparing the MAC address to IP address bindings in the DHCP snooping database or an ARP access-list. If the ARP packet contains invalid or spoofed information, it is dropped and logged. DAI also inspects ARP packets on trusted interfaces, but it does not drop them if they are invalid. Instead, it forwards them to the destination without validation. This allows the switch to support devices that use static IP addresses or have legitimate reasons to send ARP packets with different MAC address to IP address bindings. However, this also means that if a spoofed ARP packet is received on a trusted interface, it will bypass the DAI validation and be forwarded to the destination. This could allow an attacker to poison the ARP cache of other devices and perform a man-in-the-middle attack. Therefore, the correct answer is option B. The switch drops the packet after validation by using the IP & MAC Binding Table. References:

Understanding and Configuring Dynamic ARP Inspection

DAI (Dynamic ARP Inspection)

Dynamic ARP Inspection (DAI) Explanation & Configuration

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0

A connector is a feature that enables a Cisco ISR to use the default bypass list automatically for web filtering. A connector is a software component that runs on the ISR and communicates with the Cloud Web Security service. The connector intercepts the web traffic from the branch users and redirects it to the Cloud Web Security service for scanning and policy enforcement. The connector also maintains a default bypass list, which contains the domains and URLs that are not redirected to the Cloud Web Security service. The default bypass list is updated automatically by the Cloud Web Security service and can be customized by the administrator. The default bypass list helps to improve the performance and reliability of the web filtering solution by avoiding unnecessary redirections of trusted or sensitive web traffic12. References: 1: Security Configuration Guide: Cloud Web Security, Cisco IOS Release 15M & T - Cisco Integrated Services Routers Generation 2 with Cisco Cloud Web Security Solution [Support] - Cisco 2: Security Configuration Guide: Cloud Web Security, Cisco IOS Release 15M & T - Configuring Cloud Web Security on Integrated Services Routers Generation 2 [Support] - Cisco

Microsegmentation is a technique that divides a network into smaller segments or zones, each with its own security policies and controls. This helps to isolate and protect workloads and applications from each other, and limit the lateral movement of threats within the network. Microsegmentation can be applied to different platforms and environments, such as virtual machines, containers, cloud services, and endpoints. Microsegmentation can also improve the visibility and enforcement of network traffic, as well as the performance and scalability of security solutions.

In the context of applications or containers on the same node, microsegmentation can limit the communication between them by enforcing granular policies based on attributes such as identity, context, and behavior. For example, microsegmentation can restrict which ports, protocols, or services are allowed for each application or container, and block any unauthorized or malicious traffic. Microsegmentation can also prevent the exposure of sensitive data or resources to other applications or containers on the same node, or to external attackers who may compromise one of them.

Container orchestration, microservicing, and Software-Defined Access are not directly related to limiting the communication between applications or containers on the same node. Container orchestration is a process of managing the lifecycle, deployment, and scaling of containers across a cluster of nodes. Microservicing is an architectural style of developing applications as a collection of loosely coupled, independent, and modular services. Software-Defined Access is a network architecture that abstracts the network infrastructure from the network policies, and enables consistent and secure access to any application or service across any domain. References:

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0, Module 5: Securing the Cloud, Lesson 5.1: Describing Cloud Computing and Deployment Models, Topic 5.1.4: Microsegmentation

What Is Micro-Segmentation? - Cisco

Communicating With Docker Containers on the Same Machine - Baeldung on Ops

vulnerability is a flaw or gap in the security of a system or network that can be exploited by an attacker to compromise its functionality, integrity, confidentiality, or availability. A vulnerability can exist in the design, implementation, configuration, or operation of a system or network, and can be caused by human errors, software bugs, hardware defects, or environmental factors. A vulnerability can be exploited by an attacker using various methods, such as malware, phishing, brute force, denial-of-service, or injection attacks. A vulnerability can also be exploited by an insider who has legitimate access to the system or network, but abuses their privileges for malicious purposes. A vulnerability can be discovered by security researchers, ethical hackers, or malicious hackers, and can be reported to the vendor or the public for remediation or exploitation. A vulnerability can be mitigated by applying patches, updates, or configuration changes, or by using security tools such as firewalls, antivirus, or encryption.

An exploit is a piece of code, data, or technique that takes advantage of a vulnerability to perform unauthorized or malicious actions on a system or network. An exploit can be used to gain access, escalate privileges, execute commands, steal data, disrupt services, or damage resources. An exploit can be delivered by various means, such as email attachments, web links, removable media, or network packets. An exploit can be developed by security researchers, ethical hackers, or malicious hackers, and can be shared or sold on the dark web or other platforms for testing or attacking purposes. An exploit can be detected by security tools such as intrusion detection systems, antivirus, or anti-exploit software.

The difference between a vulnerability and an exploit is that a vulnerability is a potential weakness that can be exploited, while an exploit is an actual attack that uses a vulnerability. A vulnerability can exist without being exploited, but an exploit cannot exist without a vulnerability. A vulnerability can be fixed or prevented, but an exploit can only be blocked or stopped. References :=

Exploit vs Vulnerability: What’s the Difference? - InfoSec Insights

Difference Between Vulnerability and Exploit - GeeksforGeeks

Exploit vs. Vulnerability: What Is the Difference? - Coralogix

Exploit vs Vulnerability: What’s the Difference? - Cybers Guards

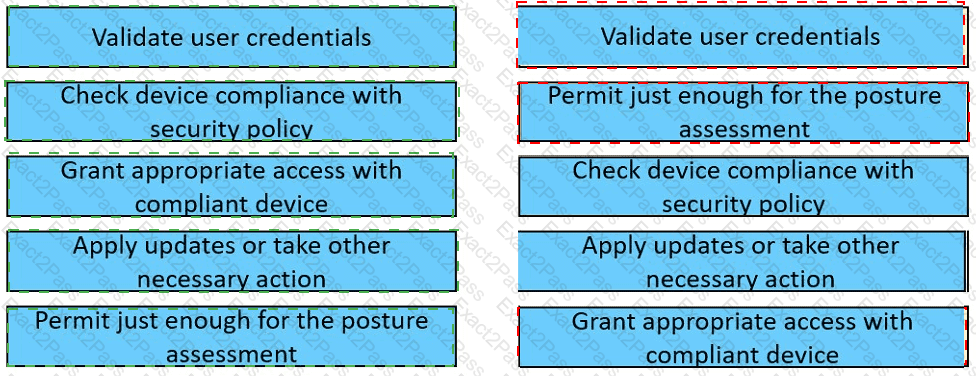

Cisco ISE is the security solution that is used for posture assessment of the endpoints in a BYOD solution. Posture assessment allows Cisco ISE to inspect the security health of the endpoints, such as their operating system, software applications, network settings, and security software. Cisco ISE can then enforce posture policies based on the compliance status of the endpoints and grant or deny them access to the network resources. Cisco ISE supports different types of posture agents, such as AnyConnect, AnyConnect Stealth, and Temporal Agent, to monitor and remediate the endpoints. Cisco ISE also supports agentless posture for devices that cannot run an agent, such as printers, cameras, and IoT devices. Cisco ISE integrates with various third-party vendors to provide posture assessment for different endpoint platforms, such as Windows, Mac, Linux, Android, and iOS. References :=

Some possible references are:

Cisco Identity Services Engine Administrator Guide, Release 3.0 - Compliance

Chapter 15. Device Posture Assessment - Cisco ISE for BYOD and Secure Unified Access

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0
