A connector is a feature that enables a Cisco ISR to use the default bypass list automatically for web filtering. A connector is a software component that runs on the ISR and communicates with the Cloud Web Security service. The connector intercepts the web traffic from the branch users and redirects it to the Cloud Web Security service for scanning and policy enforcement. The connector also maintains a default bypass list, which contains the domains and URLs that are not redirected to the Cloud Web Security service. The default bypass list is updated automatically by the Cloud Web Security service and can be customized by the administrator. The default bypass list helps to improve the performance and reliability of the web filtering solution by avoiding unnecessary redirections of trusted or sensitive web traffic12. References: 1: Security Configuration Guide: Cloud Web Security, Cisco IOS Release 15M & T - Cisco Integrated Services Routers Generation 2 with Cisco Cloud Web Security Solution [Support] - Cisco 2: Security Configuration Guide: Cloud Web Security, Cisco IOS Release 15M & T - Configuring Cloud Web Security on Integrated Services Routers Generation 2 [Support] - Cisco

AES (Advanced Encryption Standard) is a symmetric encryption algorithm that uses the same key to encrypt and decrypt data. It turns plain text into a code that only the intended recipient can read. AES has different key sizes, such as 128, 192, and 256 bits. The larger the key size, the more secure and complex the encryption is. AES 256 is the most secure encryption algorithm for VPN communications, as it uses a 256-bit key that would take an enormous amount of time and computing power to crack. AES 256 is widely used by VPN providers, as it offers a high level of security and performance for VPN tunnels. AES 256 is also recommended by the U.S. government for protecting classified information. References :=

How Does a VPN Securely Encrypt Your Connection?

What Is VPN Encryption, Types, Protocols And Algorithms Explained

What is AES (Advanced Encryption Standard)?

What is VPN Encryption & How Does it Work?

Posture is a service in Cisco ISE that checks the compliance of endpoints with corporate security policies before allowing them to connect to the network. Posture policies define the requirements that endpoints must meet to be compliant, such as having antivirus software installed and updated, or having a specific registry key value. If an endpoint is compliant, Cisco ISE can apply a Change of Authorization (CoA) to grant it access to the network resources. CoA is a mechanism that allows Cisco ISE to dynamically change the authorization attributes of an existing session, such as VLAN, dACL, or SGT, without requiring the user to reauthenticate. CoA can be triggered by various events, such as posture assessment results, profiling changes, or manual actions by the administrator. CoA can also be used to quarantine or disconnect non-compliant endpoints. Therefore, ensuring that an endpoint is compliant with a posture policy configured in Cisco ISE provides the benefit of allowing CoA to be applied if the endpoint status is compliant. References :=

Cisco Identity Services Engine Administrator Guide, Release 2.2 - Configure Client Posture Policies

Cisco Identity Services Engine Administrator Guide, Release 2.2 - Change of Authorization

IKEv1 has two modes of operation: main mode and aggressive mode. Main mode uses six messages to establish the IKE SA, while aggressive mode uses only three messages. Therefore, aggressive mode is faster than main mode, but less secure, as it exposes the identities of the peers in cleartext. This makes it vulnerable to man-in-the-middle attacks. IKEv2 does not have these modes, but uses a single four-message exchange to establish the IKE SA. IKEv2 also encrypts the identities of the peers, making it more secure than IKEv1 aggressive mode.

IKEv1 uses EAP authentication only for remote access VPNs, not for site-to-site VPNs. IKEv2 supports EAP authentication for both types of VPNs. EAP authentication allows the use of various authentication methods, such as certificates, tokens, or passwords.

IKEv1 conversations are initiated by the ISAKMP header, which contains the security parameters and the message type. IKEv2 conversations are initiated by the IKE_SA_INIT message, which contains the security parameters, the message type, and the message ID. The message ID is used to identify and order the messages in the IKEv2 exchange.

NAT-T is supported by both IKEv1 and IKEv2. NAT-T stands for Network Address Translation-Traversal, and it is a mechanism that allows IKE and IPsec traffic to pass through a NAT device. NAT-T detects the presence of NAT and encapsulates the IKE and IPsec packets in UDP headers, so that they can be translated by the NAT device. References:

IKEv1 vs IKEv2 – What is the Difference?

Comparison between IKEv1 and IKEv2

IKEv2 vs IKEv1: What are the differences?

vulnerability is a flaw or gap in the security of a system or network that can be exploited by an attacker to compromise its functionality, integrity, confidentiality, or availability. A vulnerability can exist in the design, implementation, configuration, or operation of a system or network, and can be caused by human errors, software bugs, hardware defects, or environmental factors. A vulnerability can be exploited by an attacker using various methods, such as malware, phishing, brute force, denial-of-service, or injection attacks. A vulnerability can also be exploited by an insider who has legitimate access to the system or network, but abuses their privileges for malicious purposes. A vulnerability can be discovered by security researchers, ethical hackers, or malicious hackers, and can be reported to the vendor or the public for remediation or exploitation. A vulnerability can be mitigated by applying patches, updates, or configuration changes, or by using security tools such as firewalls, antivirus, or encryption.

An exploit is a piece of code, data, or technique that takes advantage of a vulnerability to perform unauthorized or malicious actions on a system or network. An exploit can be used to gain access, escalate privileges, execute commands, steal data, disrupt services, or damage resources. An exploit can be delivered by various means, such as email attachments, web links, removable media, or network packets. An exploit can be developed by security researchers, ethical hackers, or malicious hackers, and can be shared or sold on the dark web or other platforms for testing or attacking purposes. An exploit can be detected by security tools such as intrusion detection systems, antivirus, or anti-exploit software.

The difference between a vulnerability and an exploit is that a vulnerability is a potential weakness that can be exploited, while an exploit is an actual attack that uses a vulnerability. A vulnerability can exist without being exploited, but an exploit cannot exist without a vulnerability. A vulnerability can be fixed or prevented, but an exploit can only be blocked or stopped. References :=

Exploit vs Vulnerability: What’s the Difference? - InfoSec Insights

Difference Between Vulnerability and Exploit - GeeksforGeeks

Exploit vs. Vulnerability: What Is the Difference? - Coralogix

Exploit vs Vulnerability: What’s the Difference? - Cybers Guards

ETHOS is one of the many detection engines that AMP uses to continuously protect you from malware. It is only available in the public cloud, as it requires a large amount of data and processing power to operate. ETHOS uses machine learning to analyze the behavior and characteristics of files and determine their maliciousness. It can detect both known and unknown threats, as well as polymorphic and metamorphic malware that can change their appearance or code. ETHOS is part of the AMP cloud’s dynamic analysis capabilities, which also include SPERO and Threat Grid12.

The private cloud instance of AMP does not have ETHOS, as it is meant to be an on-premises, self-contained solution that satisfies stringent privacy requirements. The private cloud instance also does not have SPERO or Threat Grid, unless they are deployed separately as additional appliances. The private cloud instance relies on the TETRA detection engine, which is a signature-based engine that can identify known malware. TETRA is updated regularly with new signatures from the AMP cloud, but it cannot detect unknown or zero-day threats as effectively as ETHOS34.

Therefore, the capability that is exclusive to the AMP public cloud instance as compared to the private cloud instance is the ETHOS detection engine. References: 1: Cisco Advanced Malware Protection Private Cloud Appliance Data Sheet 2: What is AMP Private Cloud 3: Deploy Cisco AMP Private Cloud on Cisco HyperFlex Systems 4: AMP Private Cloud vs Public Cloud Dashboard different

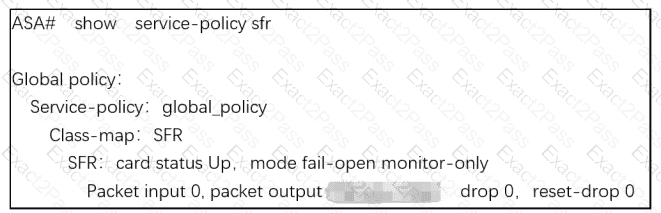

sfr {fail-open | fail-close [monitor-only]} < - There ' s a couple different options here. The first one is fail-open which means that if the Firepower software module is unavailable, the ASA will continue to forward traffic. fail-close means that if the Firepower module fails, the traffic will stop flowing. While this doesn ' t seem ideal, there might be a use case for it when securing highly regulated environments. The monitor-only switch can be used with both and basically puts the Firepower services into IDS-mode only. This might be useful for initial testing or setup.

 Tetration is the solution that protects hybrid cloud deployment workloads with application visibility and segmentation. Tetration enables a zero-trust model using segmentation, which allows you to identify security incidents faster, contain lateral movement, and reduce your attack surface. Tetration supports both on-premises and public cloud workloads and provides real-time telemetry data, behavior analysis, software inventory, and policy enforcement. Tetration is part of the Cisco Zero Trust portfolio, which also includes solutions for securing the workforce and workplace. References:

Cisco Tetration Platform - Cisco, Topic: Cisco Tetration offers holistic workload protection for multicloud data centers by enabling a zero-trust model using segmentation.

[Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0], Module 5: Securing the Cloud, Lesson 5.3: Cloud Workload Security, Topic 5.3.1: Tetration

Cisco Zero Trust Tetration, Topic: Tetration provides zero-trust security for workloads as part of the Cisco Zero Trust portfolio.

Cisco CloudLock is a cloud-native cloud access security broker (CASB) that helps you move to the cloud safely. It protects your cloud users, data, and apps. CloudLock’s simple, open, and automated approach uses APIs to manage the risks in your cloud app ecosystem. With CloudLock you can more easily combat data breaches while meeting compliance regulations1.

Cisco CloudLock provides the following features that meet the requirements of visibility into data transfers as well as protection against data exfiltration:

User security: Cloudlock uses advanced machine learning algorithms to detect anomalies based on multiple factors. It also identifies activities outside allowed countries and spots actions that seem to take place at impossible speeds across distances1.

Data security: Cloudlock’s data loss prevention (DLP) technology continuously monitors cloud environments to detect and secure sensitive information. It provides countless out-of-the-box policies as well as highly tunable custom policies. It also supports inline and out-of-band data inspection and blocking capabilities to protect sensitive data12.

App security: The Cloudlock Apps Firewall discovers and controls cloud apps connected to your corporate environment. You can see a crowd-sourced Community Trust Rating for individual apps, and you can ban or allowlist them based on risk1.

The other solutions do not provide the same level of visibility and protection as Cisco CloudLock:

Cisco Umbrella is a cloud-delivered network security service that provides DNS-layer security, secure web gateway, cloud-delivered firewall, cloud access security broker, and threat intelligence3. It does not offer data security features such as DLP, data inspection, and data blocking4.

Cisco AppDynamics Cloud Monitoring is a cloud-native application performance management solution that helps you monitor, troubleshoot, and optimize your cloud applications. It does not offer user security, data security, or app security features as a CASB solution.

Cisco Stealthwatch is a network traffic analysis solution that provides visibility and threat detection across your network, endpoints, and cloud. It does not offer data security features such as DLP, data inspection, and data blocking.

 3: Cisco Umbrella Packages - Cisco Umbrella 1: Cisco Cloudlock - Cisco 2: Cisco Cloudlock Cisco Cloudlock: Secure Cloud Data 4: Easy to Deploy & Simple to Manage CASB Solution - Cisco Umbrella : Cisco AppDynamics Cloud Monitoring : Cisco Stealthwatch - Cisco

Cisco Umbrella is a cloud-delivered security service that protects users from malicious domains and IPs, regardless of their location or network. When users are off the corporate network, they can use the Cisco Umbrella roaming client, which is embedded in the Cisco AnyConnect client, to enforce Umbrella DNS servers for all DNS queries. This way, Umbrella can block requests to malicious or unwanted domains before a connection is ever made, and provide visibility and protection for users anywhere they go. The Umbrella roaming client does not require any additional agents or end user action, and it can work with or without a VPN connection. References := Cisco Umbrella Roaming, Umbrella Roaming Client – How it Works on Your Company Network

Explanation

In its essence, FlexVPN is the same as DMVPN. Connections between devices are still point-to-point GRE tunnels, spoke-to-spoke connectivity is still achieved with NHRP redirect message, IOS routers even run the same NHRP code for both DMVPN and FlexVPN, which also means that both are Cisco’s proprietary technologies.

The function of Cisco Cloudlock for data security is data loss prevention (DLP). Cisco Cloudlock is a cloud-native cloud access security broker (CASB) that helps you move to the cloud safely. It protects your cloud users, data, and apps. Cloudlock’s simple, open, and automated approach uses APIs to manage the risks in your cloud app ecosystem1. One of the key features of Cloudlock is its DLP technology, which continuously monitors cloud environments to detect and secure sensitive information. It provides countless out-of-the-box policies as well as highly tunable custom policies. You can use Cloudlock’s DLP to prevent data breaches, comply with regulations, and enforce data governance across SaaS, PaaS, and IaaS platforms2. References: 1: Cisco Cloudlock - Cisco2: Cloudlock: Cloud User Security - Cisco Umbrella.

The Cisco WSA can enforce bandwidth restrictions for web applications by using the Application Visibility and Control (AVC) engine. The AVC engine allows the WSA to identify and control application activity on the network, and to apply bandwidth limits to certain application types or individual applications. The WSA dynamically creates a scavenger class QoS policy and applies it to each client that connects through the WSA. The scavenger class QoS policy assigns a low priority to the application traffic and limits the bandwidth usage based on the configured settings. This way, the WSA can prevent congestion and ensure fair allocation of bandwidth among different applications and users. References:

User Guide for AsyncOS 11.8 for Cisco Web Security Appliances - GD (General Deployment) - Managing Access to Web Applications

WSA - limit bandwidth - Cisco Community
